All dimensions without
tolerances.
Tolerance + 2 mm/0.08 in

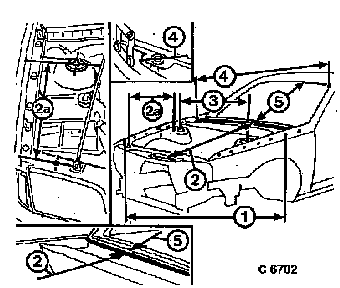

| All Models Pos. mm/in. _____ _______ ______ _______________ 1 1580/62.20 2 1110/43.70 2a 650/24.80 3 1120/44.09 4 1534/60.39 5 825/32.48 |
|

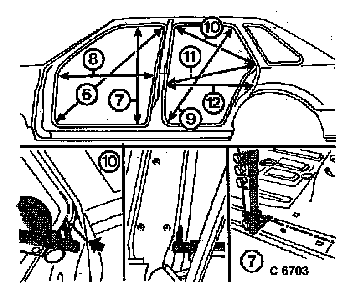

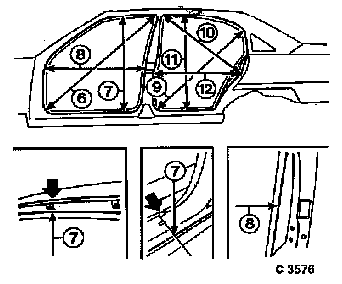

| Models Pos. mm/in. _____ _______ ______ _______________ 6 1432/56.38 7 1003/39.49 8 950/37.40 9 1118/44.02 10 920/36.22 11 1005/39.57 12 868/34.17 |
|
| Model 29 Pos. mm/in. _____ _______ ______ _______________ 6 1432/56.38 7 1003/39.49 8 950/37.40 9 1135/44.69 11 1008/39.69 12 860/33.86 |
|

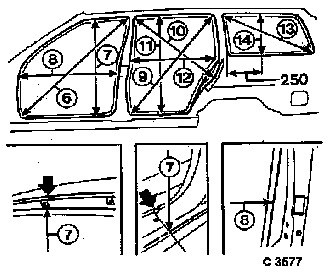

| Models 66, 67 _____ _______ ______ _______________ 6 1432/56.38 7 1003/39.49 8 950/37.40 9 1118/44.02 10 920/36.22 11 1005/39.57 12 860/33.86 13 920/36.22 14 416/16.38 |
|

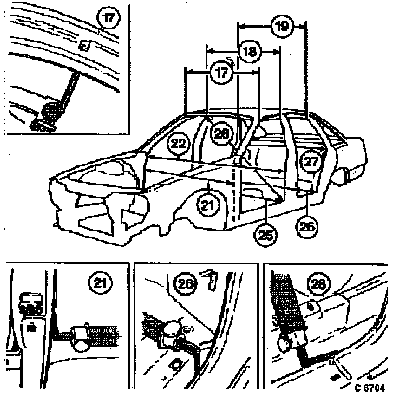

| Modelle 16, 17, 19 Pos. mm/in. _____ _______ ______ _______________ 17 1178/46.38 18 1142/44.96 19 1286/50.63 21 1450/57.09 22 1460/57.48 23 1466/57.72 25 1496/58.90 26 1506/59.29 27 1524/60.00 28 1632/64.25 Note: Measurements are made at the front edge of the flange. |
|

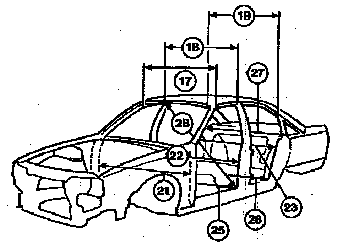

| Modell 29 Pos. mm/in. _____ _______ ______ _____________ 17 1178/46.38 18 1142/44.96 19 1135/44.68 21 1450/57.09 22 1460/57.48 25 1496/58.90 26 1506/59.29 27 1470/57.87 28 1650/64.96 Note: Measurements are made at the front edge of the flange. |
|

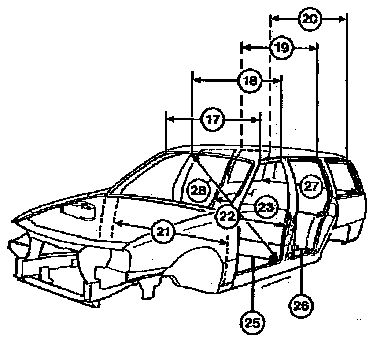

| Models 66, 67 Pos. mm/in. _____ _______ ______ ______________ 17 1178/46.38 18 1142/44.96 19 1130/50.63 20 1175/46.25 21 1450/57.09 22 1460/57.48 23 1474/58.03 25 1496/58.90 26 1506/59.29 27 1450/57.09 28 1632/64.25 Note: Measurements are made at the front edge of the flange. |
|

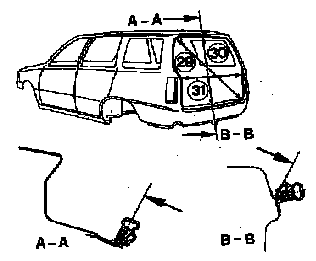

| Models 66, 67 Pos. mm/in. _____ _______ ______ _______________ 29 1358/53.46 30 850/33.46 31 1226/48.27 |
|

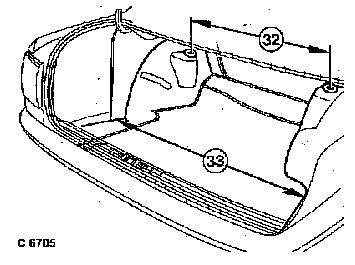

| Models 16, 17, 19, 29 Pos. mm/in. _____ _______ ______ _______________ 32 1060/41.73 33 1425/56.10 |
|

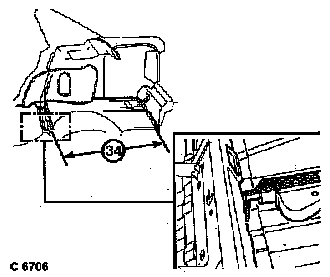

| Models 16, 17, 19 Pos. mm/in. _____ _______ ______ ______________ 34 1050/41.34 Modell 29 Pos. mm/in. _____ _______ ______ _______________ 34 1130/44.49 |
|

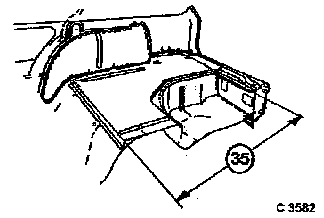

| Models 66, 67 Pos. mm/in. _____ _______ ______ _____________ 35 1145/45.08 |
|

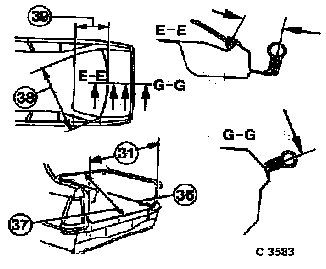

| Pos. Models Models 16, 17, 19 29 Dim in mm/in. Dim in mm/in. __________ ______ ____ __________ 31 1300/51.18 1297/51.06 36 1275/50.19 37 580/22.13 580/22.83 38 1375/54.13 1405/55.31 39 725/28.54 795/31.29 |
|

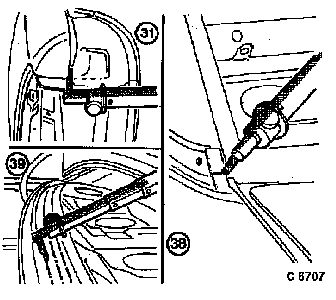

| Modell 29, Details zu den MaBen Position 31, 38, 39. |
|
|
