How to burn a firmware file on to a CD with
Nero.
How to update
your DVD-player.
This guide is for Pioneer
DV-470/575/380/585/393/490/696..
This guide is for Nero Burning
ROM 6.6.0.8.
You could use any other
burn program to make the disc.
After every step there will be
a piture to show you how it
looks in Nero Burning ROM.
To creat the Software Update Disc ,tune in the program
as follow:
- Start the program Nero
Burning ROM

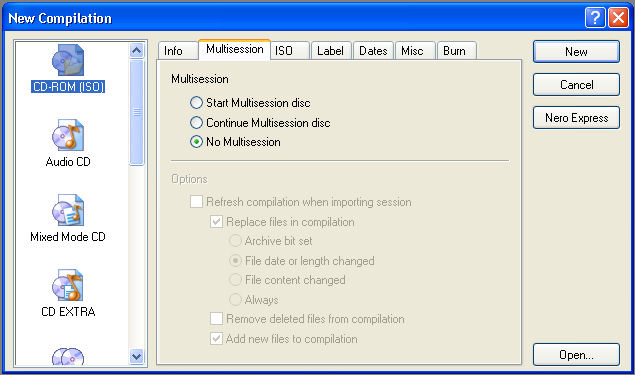

- Choose CD type
CD-ROM(ISO) and check No Multisession

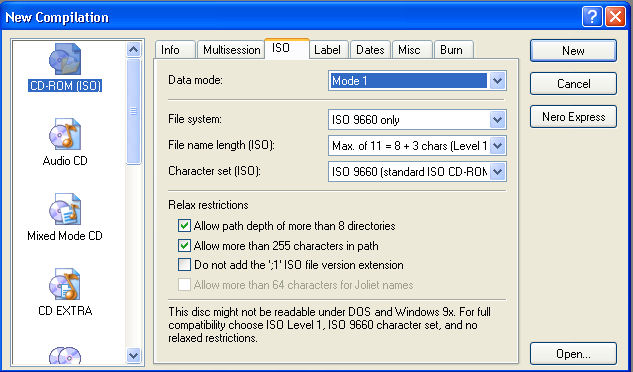

- On the tab ISO you
do as follows :
A) Data mode: Mode 1
B) File system: ISO 9660 only
C) File namne length: Max. of 11 = 8+3 (Level 1)
D) Character set: ISO 9660 (Standard ISO CD-ROM)
E) Nothing else should be checked.

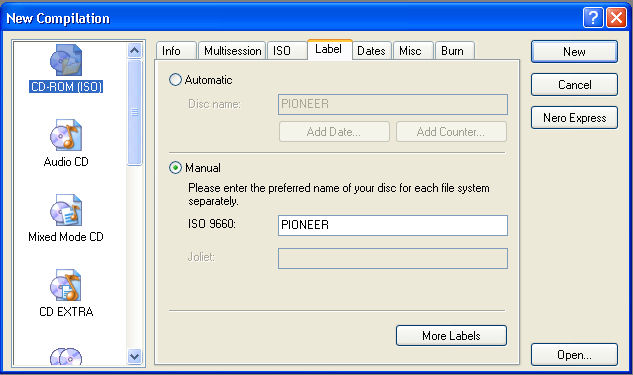

- On the tab Label at ISO 9660 you should write PIONEER with capital letters.

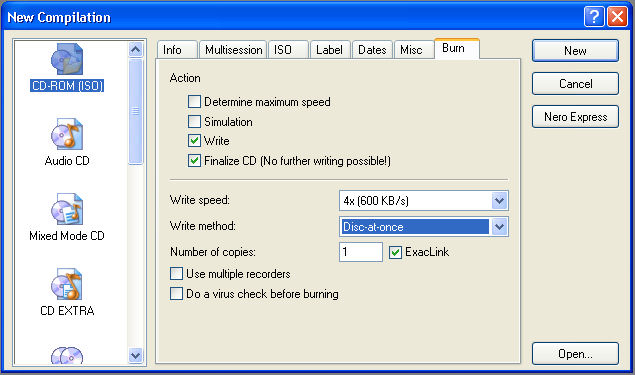

- On the tab Burn you check Write, Finalize CD.
- Write speed
4x
- Write method:
Disc-at-once

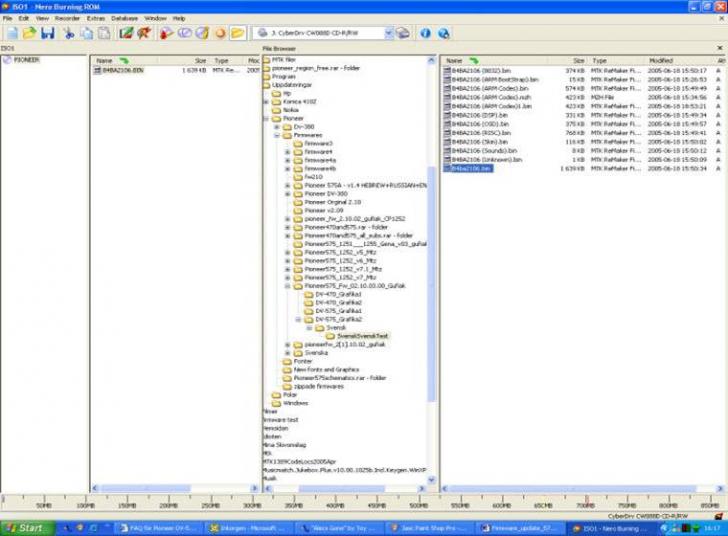

- Click on New
and the following window will open, see picture.
- Find the *.bin file you should burn on the CD. Drag it over to the burn window.
make sure the lable of the CD is PIONEER.
- Bin file name
shall be in CAPITAL letters that includes also the BIN.
- Now you can start burning.
- When its finished, take the CD to your DVD-player.
- Turn on the player,
and open the disc tray.
- Put the Software Update Disc on the tray,
and close the tray.
- A screen will be displayed inviting you to push the
"play" button
to start the update.
- The player will load the data, and the tray will
open again. It is safe to remove the Software Update Disc from the tray now.
Leave the tray open
- Wait until the update process finishes and the Pioneer
logo is shown on the
screen. The update process will complete in less than 5 minutes.
- The DVD-player
is now updated with your new firmware.
- The player is set back to Fresh out of the box.
