USB Card Reader USER MANUAL

USB Card Reader

USER MANUAL

Brief Introduction

Product Features

System Requirement

Driver

Check the installation result

Uninstall Driver

1. Brief Introduction

This is a memory cards¡¯ Reader/Writer device, w 16216u2019q hich can read and write information from CF / MD / XD / SM / MMC / SD / MS cards. For example, your computer can read and store all the photos via this device after you take photos by Digital camera. CF : Compact Flash Type I Card
CF : Compact Flash Type II Card
MD: Micro Drive Card
XD: XD Picture Card
SM: Smart Media Card
MMC: Multi Media Type I Card
MMC: Multi Media Type II Card
SD: Secure Digital Card
MS: Memory Stick Card
MS DUO : Memory Stick DUO Card
MS PRO : Memory Stick PRO Card
MS PRO DUO : Memory Stick PRO DUO Card

2. Product Features

Plug and play , compliant with USB specification 2.0 Bus powered from Ethernet USB Port
Compact and portable shape Support Windows 98SE / ME / 2000 / XP and Mac OS Only under window 98SE 2000 & Service Pack 1 & Service Pack 2 operating system , it needs driver

3. System Requirement

IBM PC and compatible 486DX-100 MHz CUP or higher .

Available USB port

CD-ROM Drive

At least 16MB storage

4. USB Card Reader installation process

Please follow the below process to install USB Card Reader Driver

Start your computer and check if the USB port is available and runs well .

During installation , please don¡¯t link USB Card Reader with your computer .

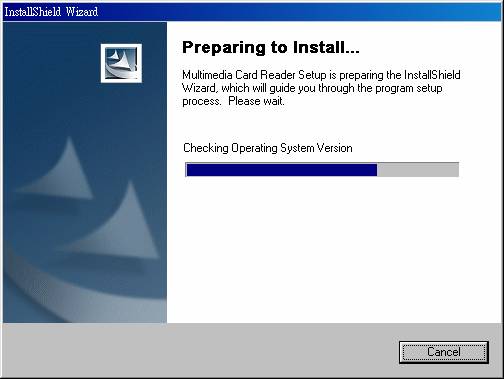

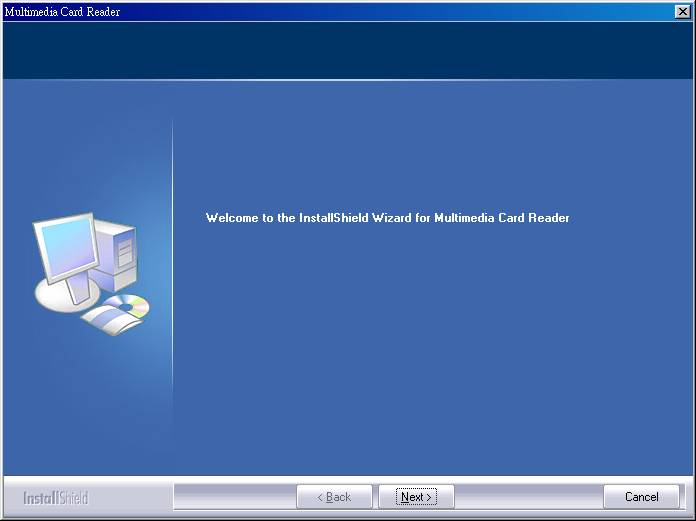

Double click ¡® setup.exe ¡¯ ( image 1 ) , then it will show the following installation interface ( image 2 )

Images

( Images

Click ¡® Next ¡¯ to continue installation ( image

( Images

it will copy the relative files to the system ( image

(Images

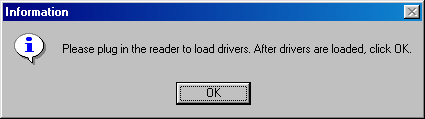

When the following window displayed, please link the USB Card Reader to your computer, system will detect it and install its driver .

(Images

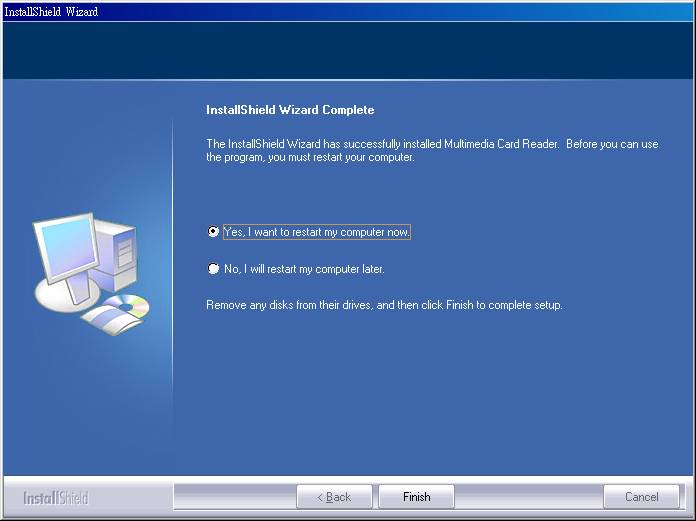

After installation , click ¡® OK ¡¯ ( image ) , and click ¡® Finish ¡¯ ( image ) to restart your computer .

NOTE : Please pull out the USB Card Reader from your computer .

(Images

Check the installation result

1. Please use the right-key to click ¡® My Computer ¡¯ , and choose ¡® Properties ¡¯ to open ¡® System Properties ¡¯ ( image

(Images

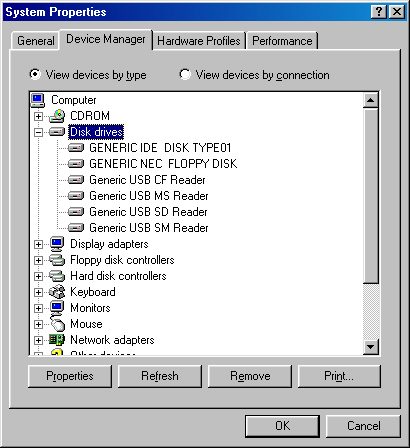

If you see ¡®Generic USB CF Reader Generic USB MS Reader Generic USB SD Reader Generic USB SM Reader¡¯ from ¡°Disk drivers¡± , it means you installed the driver successfully . ( image

(Images

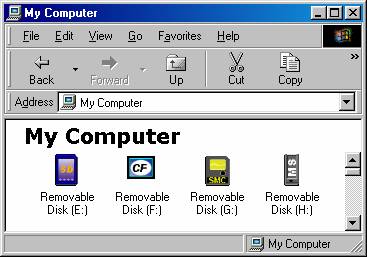

Double click ¡® My Computer ¡¯ ( image ) in your desktop , you can see 4 icons ( image 1 ) in it ; Just insert the cards of CF / SD / MS / SM / XD into the USB Card Reader , you can open the opposite icon in ¡® My Computer ¡¯ , then you can read , write and format and etc.

(Images

(Images1

Uninstall USB card reader s driver

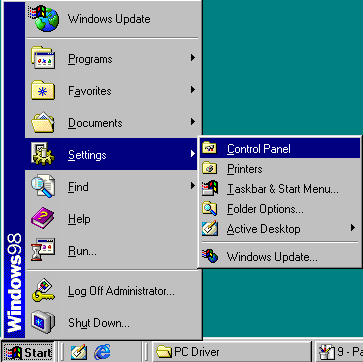

please follow the path ¡° Start Settings Control Panel Add Remove Programs¡± (Images1 Open¡° Add/Remove Programs ¡±window (Images1

(Images1

(Images1

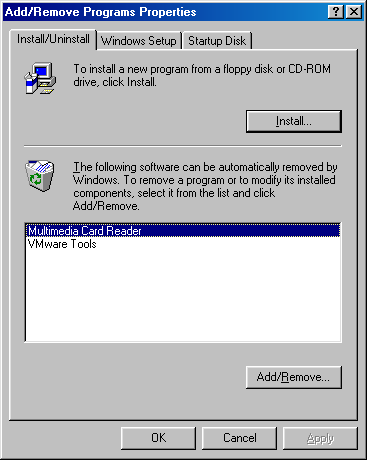

Please choose ¡° Multimedia Card Reader ¡±, and then click ¡°Add / Remove (R) ¡±in the down right conner (Images1

(Images1

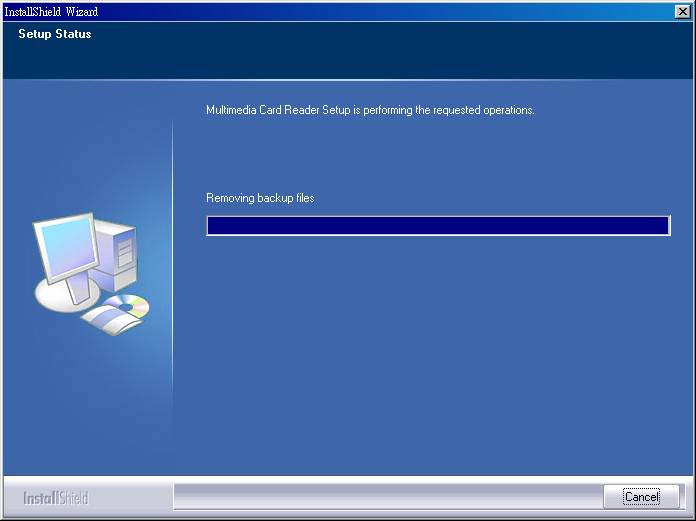

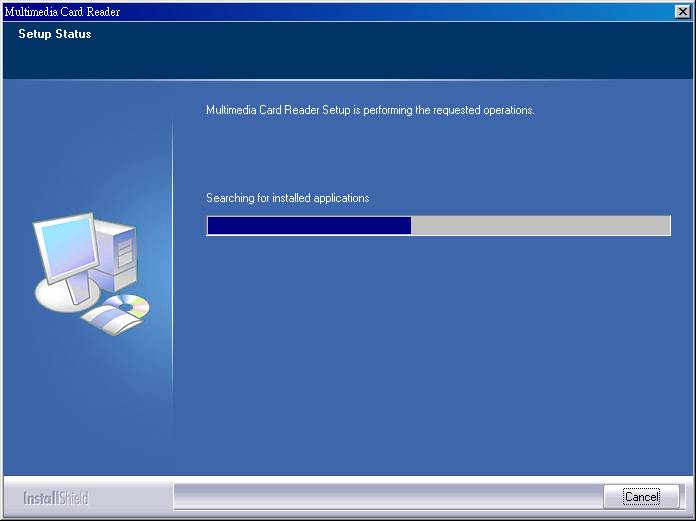

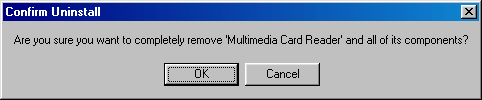

Click ¡° OK ¡± , just follow the uninstalling program cue to uninstall USB card reader¡¯s driver (Images1

(Images1

(Images1

(Images1
