As part of the ASK configuration, you 19219i815t may need to configure NS. You can find all the needed files in ASKCA directory, which has two subdirectories: ASK and NS. The following diagram shows a view of the ASKCA directory with the NS subdirectory expanded.

Prerequisite

Ensure that Apache ANT is available on the host machine for running build scripts.

Configuring NS

A. Select the application server(s) for which the NS component needs to be built. Set the appropriate property inside drivers.properties file to true as shown below.

Drivers.properties	Value	Remarks
use.oc4j	true	Generate NS component for OC4J
use.jboss	true	Generate NS component for JBoss 4
use.websphere	true	Generate NS component for IBM Websphere 6.0
use.weblogic	true	Generate NS component for BEA Weblogic 9.0

Select the driver(s) needed for the NS component. Set the appropriate property inside drivers.properties file to true as shown below.

Drivers.properties	Value	Remarks
im.driver	true	Requires IM driver in NS component
email.driver	true	Requires Email driver in NS component

Set the user-specific properties for the selected drivers.

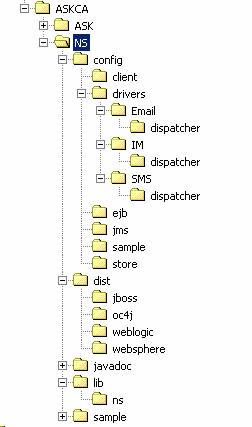

Creating ns.ear for the selected application server(s)

Update the drivers.properties file with the appropriate values.
Invoke ant configure command in the NS directory.

For each application server selected, an ns.ear file will be generated under dist folder in the corresponding subdirectory.

Configuring ASK

Rename the appConfig-template.xml file to appConfig.xml
Specify the access points in the appConfig.xml file.

Note: Use the same IM, Email, SMS account that was specified in the NS

drivers.properties file for creating ns.ear.

Rename the askca.properties.template file to askca.properties

Specify the correct path of the "jdev/wireless/j2ee/applications" directory.

The "askServer.ear" will be picked up from this location.

Specify the correct path of the "jdev/lib" directory.

The "xmlparserv2.jar" will be picked up from this location.

Specify the correct path of the "jdev/diagnostics/lib" directory.

The "ojdl.jar" will be picked up from this location.

Change the port for the "Help App" URL if you are not using the default ports.

The default values present in the file are given below:

ask.help.app.url.oc4j = https://localhost:8888/ask-help-app/faces/HelpApp.jspx

ask.help.app.url.jboss = https://localhost:8080/ask-help-app/faces/HelpApp.jspx

ask.help.app.url.weblogic = https://localhost:7001/ask-help-app/faces/HelpApp.jspx

ask.help.app.url.websphere = https://localhost:9080/ask-help-app/faces/HelpApp.jspx

Creating askServer.ear for the selected application server(s)

The ASK directory structure is shown below:

Run ant configure command in the ASK directory.

The askServer.ear file will be generated under dist folder for each selected application server.

Deploying on OC4J

Add Notification Service Queue entries into OC4J.

Modify $/j2ee/home/config/jms.xml to add the following entries:

<description>Message Receiver Queue</description>

</queue>

<description>Message Sender Queue</description>

</queue>

<description>Driver Queue</description>

</queue>

<queue-connection-factory name="ConnectionFactory" location="ConnectionFactory"/>

Note: bounce OC4J for your modifications to take effect.

Deploy ns.ear from NS/dist/oc4j directory.

Deploy askServer.ear from ASK/dist/oc4j directory.

Deploying on JBoss

Creating Queues and ConnectionFactory

Creating required JMS queues for JBoss

Create a file called ns-destinations-service.xml in JBOSS_HOME/server/default/deploy/jms/

The file should contain the following:

----- ----- ----[Begin]----- ----- -------

<?xml version="1.0" encoding="UTF-8"?>

<!--

| This file defines the Queues and Topics that Notification Service

| uses.

-->

<mbean code="org.jboss.mq.server.jmx.Queue"

name="jboss.mq.destination:service=Queue,name=MsgSenderQueue">

jboss.mq:service=DestinationManager

</depends>

jboss.mq:service=SecurityManager

</depends>

</mbean>

<mbean code="org.jboss.mq.server.jmx.Queue"

name="jboss.mq.destination:service=Queue,name=MsgReceiverQueue">

jboss.mq:service=DestinationManager

</depends>

jboss.mq:service=SecurityManager

</depends>

</mbean>

<mbean code="org.jboss.mq.server.jmx.Queue"

name="jboss.mq.destination:service=Queue,name=DriverQueue">

jboss.mq:service=DestinationManager

</depends>

jboss.mq:service=SecurityManager

</depends>

</mbean>

</server>

----- ----- ----[End]----- ----- ---------

Deploying the ear files

Deploying NS on JBoss

Copy ns.ear from NS/dist/jboss directory to $JBOSS_HOME/server/default/deploy
JBoss server will hot deploy the ear file.

Note: To undeploy NS, delete ns.ear
from $JBOSS_HOME/server/default/deploy

Deploying askServer on JBoss

Copy askServer.ear from ASK/dist/jboss directory to $JBOSS_HOME/server/default/deploy

JBoss server will hot deploy the ear file.

Send an instant message or email message to the account, which is configured,

for NS and askServer. You should receive the ASK response.

Note: To undeploy askServer, delete askServer.ear
from $JBOSS_HOME/server/default/deploy

Deploying on IBM Websphere 6.0

Creating Queues and JMS Resources

Creating Bus

Go to Administration Console of Websphere IBM Application Server 6
Note: This application has been tested with version 6.0.0.1.
On the left Navigation tree, click on 'Service Integration', click "Buses" and then click "New"
Set the name of the bus as "NSBus" and then click "OK".
Select "NSBus" from the list of buses to open "NSBus" configuration page.
Click on "Bus members" from "Additional Properties" section.
Click on "Add" button.
Select the server (e.g.: <Machine Name>:server1), click "Next" button and finally click "Finish" button to add the bus member.
Come back to "NSBus" configuration page and click on "Destinations" from "Additional Properties" section.
Click on "New" to create a destination on this bus.
Select destination type as "Queue", give the identifier as "MsgReceiverDestination" and select the server name given in step 7 as bus member and finally click "Finish" button to create the destination.
Similarly create two other destinations with identifier "MsgSenderDestination" and "DriverDestination".
Click on save button to save the changes to the master configuration.

Creating JMS Resources

From the left Navigation tree, click on "Resources" then click "JMS Providers" and then click "Default messaging".
From Default messaging provider configuration page, click on "JMS queue connection factory" link under "Connection factories" link.
Click on "New".
Give the connection factory name and the JNDI name both as "ConnectionFactory". Select the bus name as "NSBus" and click "OK".
Click on save button to save the changes to the master configuration.
Go back to Default messaging provider configuration page and click the link "JMS queue" under Destinations section.
Click on "New" button. This will take you to queue configuration page.
Give the name of the queue as "DriverQueue" and its JNDI name as "queue/DriverQueue". Select the bus name as "NSBus" and Queue name as "DriverDestination".
Click "OK" to create this new JMS queue.
Similarly create two more queues.
One queue with Name: "MsgReceiverQueue", JNDI Name: "queue/MsgReceiverQueue", Bus Name: "NSBus" and Queue name: "MsgReceiverDestination".
Another with Name: "MsgSenderQueue", JNDI Name: "queue/MsgSenderQueue",
Bus Name: "NSBus" and Queue name: "MsgSenderDestination".
Click on "Save" button to save the changes to the master configuration.
Go back to default messaging provider configuration page and click on "JMS activation spec" link under the section Activation specifications.
Click on "New" Button, which will take you the new activation specifications configuration properties.
Give the name of the activation spec as "MessageDispatcherBeanAS" and JNDI name as "eis/MessageDispatcherBeanAS". Select the destination type as "Queue". Give the Destination JNDI name as "queue/MsgReceiverQueue" and select the Bus name as "NSBus". Click on "OK" to create the activation spec.
Similarly create another activation spec with name "MessageForwarderBeanAS", JNDI name "eis/MessageForwarderBeanAS, Destination type "Queue", Destination JNDI name "queue/MsgSenderQueue" and Bus name "NSBus".
Click on "Save" button to save the changes to the master configuration.

Setting the Websphere Proxy

Websphere xml validation will require DTDs hosted on central servers, it is important to configure Websphere to use the appropriate proxy if necessary. The error messages that result from an improperly set proxy will typically include a NoRouteToHostException.

In order to set the proxy in Websphere, do the following:

Open the Websphere Administration Console.
Click on Servers on the left. Underneath this, click on "Application Servers". On the page that loads, click on your server name (which is a link).
Under "Server Infrastructure" on the right, click on "Java and Process Management", then click on "Process Definition".
Under Additional Properties, click on "Java Virtual Machine".
On the resulting page, under "Additional Properties" click on "Custom Properties"
Click on "New" and fill in the resulting page for the first property, click on the "Save" link when you have finished, then repeat for the remaining properties.

http.proxyHost
http.proxyPort
http.nonProxyHosts (this is a set of hosts to ignore separated by a |, e.g. localhost|*.us.foo.com|*.uk.foo.com)
http.proxySet (set this to true)

Deploying the ear files

Deploying and running Notification Server

From the left navigation tree, click on "Applications" and then click "Install new Application".
Click on "Browse button" and browse to "ns.ear" that is to be deployed present under NS/dist/websphere, and click on "Next button".
On the new screen, check on "Generate default bindings" and click "Next".
On the new screen, check on "Deploy enterprise beans" and click "Next".
This will bring "Map module to servers" screen, click "Next".
This will bring "Provide listener bindings for message-driven beans" screen.
In the bindings column of EJB module "MessageReceiverBean", give the Activation specification JNDI name as "eis/MessageReceiverBeanAS". For EJB module "MailMessageReceiverBean", give the Activation specification JNDI name as "eis/MailMessageReceiverBeanAS". And for EJB module "MessageForwarderBean", give the activation specification JNDI name as "eis/MessageForwarderBeanAS".
Click next to go to Map JCA resource references to resources page.
On this page, under bindings column of table J2CconnectionFactory for module "OASW Messaging Transport Storage" specify both name and JNDI name as "TransStorageFactory".
Under the binding column of table J2CconnectionFactory for module XMPP-IM Driver specify both name and JNDI name as "XMPP-IM-Driver".
Under the binding column of table J2CconnectionFactory for module XMPP-IM Driver Dispatcher, specify the name and the JNDI name both as "XMPPManagedConnectionFactory".
Under the binding column of table J2CconnectionFactory for module Email Driver, specify the name and the JNDI name both as "Email-Driver"
Under the binding column of table J2CconnectionFactory for module Email Driver Dispatcher, specify the name and the JNDI name both as "EmailManagedConnectionFactory"
Under the binding column of table J2CactivationSpec for module XMPP-IM Driver specify the name as "MessageReceiverBeanAS" and JNDI name as

"eis/MessageReceiverBeanAS".

Under the binding column of table J2CactivationSpec for module Email Driver specify the name as "MailMessageReceiverBeanAS" and JNDI name as "eis/MailMessageReceiverBeanAS".
Click on next button, which will bring "Map resource references to resources" page. Click on next button without making any changes in this page.
In case of any warning click on "Continue" button.
Finally click "Finish" button, which will deploy ns.ear.
From the left navigation tree go to "Applications" -> "Enterprise Applications" page. And start the notification server.

Deploying and running ASK Server

Go to Administration Console of Websphere IBM Application Server 6.
Note: This application has been tested with version 6.0.0.1.
Login to websphere admin console using any username.
From the left navigation tree, click on "Applications" and then click "Install new Application".
Click on "Browse button" and browse to askServer.ear that is to be deployed (present under ASK/dist/websphere) and click on "Next button".
On the new screen, check the "Generate default bindings" checkbox. Do not change any other values and click "Next".
On the new screen, check the "Pre-compile JSP" checkbox. Make sure that "Deploy enterprise beans" is checked. Do not make any other changes and click "Next". This will bring "Map module to servers" screen, click "Next".
This will bring up "Provide options to perform the EJB Deploy" screen, Click "Next".
This will bring up "Provide listener bindings for message-driven beans" screen.

In this screen, modify the "Activation Specification JNDI name" for the bean "MessageDispatcherBean" as "eis/MessageDispatcherBeanAS" and click "Next".

Keep clicking "Next" button accepting the default settings for all the subsequent screens. In case of any warning(s) click "Continue".
Finally you reach the "Summary" page. Click "Finish" to deploy the "askServer.ear".

This will take you to a new screen, which says "Installing" which shows the messages as it progresses. Finally the message "Application ASKServerApplication installed successfully" will be obtained at the bottom. Below that, click on the "Save to Master Configuration" link. This takes you another screen on which you should click "Save" button.

From the left navigation tree go to "Applications" -> "Enterprise Applications" page. Select the "AskServerApplication" and press "Start" button.
The message "Application ASKServerApplication on server server1 and node <NodeName> started successfully" will be displayed.

If erros are displayed, please check the log file under:

<WEBSPHERE_INSTALL_DIR>\profiles\default\logs\server1\trace.log

Send an instant message or email message to the IM/Email account, which has been configured for NS and askServer.
You should receive the ASK response.

Deploying on BEA Weblogic 9.0

Creating Queues and JMS Modules

Create Persistent Store

Create a new directory to create the store (E.g. <BEA_HOME>/nsfilestore).
Now from the left navigation menu of the weblogic server administrative console go to Services->Persistent Stores.
Click on "Lock to Edit" button on the left navigation menu. This is will enable the user to create a new store.
Now click on "New"->"Create FileStore" from the "Summary of persistent Stores" page.
Give a name of the filestore say "FileStore-0", set the target to "AdminServer", and set the directory path to the one created in step 1.
Click finish to create the store.
Click "Activate Changes" button on the left navigation menu.

Create JMS Server

Click on "Lock & Edit" Button on the left navigation menu.
From the left Navigation tree, click on Services->Messaging->JMS Servers
Click on "New" button.
Give a name to JMS server say "JMSServer-0", set the persistent store to the one created in the above step (FileStore-0). Click on "Next" button.
Give the target as "AdminServer" and click "Finish" to create the JMS server.
Click "Activate Changes" button on the left navigation menu.

Create JMS Module

Click on "Lock & Edit" Button on the left navigation menu
From the left Navigation tree, click on Services->Messaging->JMS Modules.
Click on "New" button.
Give a name to the module say "SystemModule-0". Click on "Next".
Select "AdminServer" as target server. Click on "Next".
Check the check box "Would you like to add resource" and click "Finish".
This will bring the configuration page for "SystemModule-0".
Click on "New" button to add a resource. Select type as "Template", Click "Next", Give the name as "Template-0" and click "OK".
Now create a queue by clicking on "New" button again, Set the type as "Queue", Name and JNDI Name as "queue/DriverQueue", Template as the one created in step 8: "Template-0" and click "Next".
Now click on "Create a New SubDeployment" button. Give a name say "SubDeployment-0" and click "OK".
Now select the subdeployment as "SubDeployment-0" and set the target to "JMSServer-0" and click "Finish".
Click on New button again, select the Type as Queue, Set Name and JNDI-Name as "queue/MsgReceiverQueue", Template as "Template-0" and click "Next". Set the SubDeployments as "SubDeployment-0", Targets as "JMSServer-0" and click "Finish".
Click on New button again, select the Type as Queue, Set Name and JNDI-Name as "queue/MsgSenderQueue", Template as "Template-0" and click "Next". Set the SubDeployments as "SubDeployment-0", Targets as "JMSServer-0" and click "Finish".
Click on New button again, select the Type as "Connection Factory", Set Name and JNDI Name as "ConnectionFactory", Select the subdeployment as "Subdeployment-0". Set the target to "JMSServer-0". Do not check on "AdminServer". Click Finish.
Click "Activate Changes" button on the left navigation menu

Deploying the ear files

Deploying and running Notification Server

Click on "Lock & Edit" Button on the left navigation menu
Click on "Deployment" from the left navigation tree.
Click on "Install" button. And browse to the location where weblogic ns.ear file is located. (NS/dist/weblogic). Click Next.
Select "Install this deployment as an application" and Click on "Next" button. Then click "Finish" button.
Click on "Activate Changes" button on the left navigation menu.
Now select ns and click "Start->Servicing all requests". This will start the notification server.

Deploying and running ASK Server

Login to the Weblogic Admin Console.
Click on "Lock and Edit"
Click "Deployments" then click "Install".
Upload the askServer.ear file from ASK/dist/weblogic location and click on "Next".
Select "Install this as an Application" and click "Next"
Click "Finish" on the next screen.
Click on "Activate Changes" green button on the left hand of the screen.
Select the askServer and then go to "Start" drop down, click "Servicing all requests".
This will take you to the "Start deployments" screen. Press on the "Yes" button.
After this, the askServer starts running and the status will be "Start running".
Now send an instant message or email message to the account, which is configured,

in NS and askServer. You should receive the ASK response.

Document Info

Accesari: 1168
Apreciat:

Comenteaza documentul:

Nu esti inregistrat
Trebuie sa fii utilizator inregistrat pentru a putea comenta

Creaza cont nou

A fost util?

Daca documentul a fost util si crezi ca merita
sa adaugi un link catre el la tine in site

Copiaza codul:
in pagina web a site-ului tau.

eCoduri.com - coduri postale, contabile, CAEN sau bancare

Politica de confidentialitate | Termenii si conditii de utilizare
