8/16 Channels all real time recording DVR(H.264 Compression), Live view and playback up to D1 (704×576 PAL/720×480 NTSC)

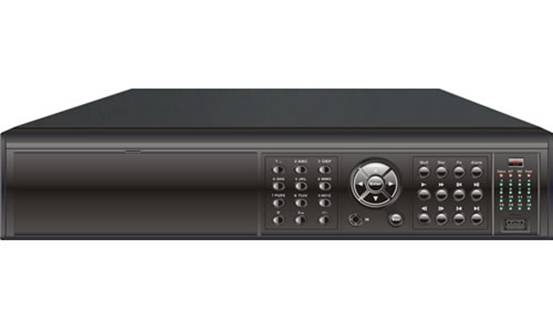

D9008TD/D9016TD(With Mouse)
OVERVIEW 16 Channel H.264 DVR With Internet Access. This is called
by some CCTV veterans "the best kept secret of the CCTV industry" !
The D9008TD/D9016TD series uses H.264 compression technology,This compression allows for clean viewing on the
Internet over narrow bandwidth and dramatically increases storage space. This
is one of only a sel 141n133b ect few DVRs on the market that
have synchronized audio/video realtime (25 fps or 30
fps) recording on every channel - 400 fps or 480 fps on a 16-ch unit(200 fps or
240 fps on a 8-ch unit).
This digital video recorder contains advanced web access, system
integration and synchronized audio and video recording features that are
suitable for various types of professional installations, stores, warehouses,
homes, government agencies, education facilities, etc.
MAIN
FEATURES AT A GLANCE * H.264
Compression. BlackFin Video Processors
* Ethernet Connection Port for LAN, WAN and Internet
* CD/DVD burner, USB HDD & Flash disk support for backup
* IR Remote Control
* D1 resolution for live view and playback
* 30 frame per second synchronized video and audio recording
* Two way audio
* Motion detection on every channel
* Direct network access using IE Browser
* Central management software for viewing/managing multiple DVRs
Specifications:
|
Model |
D9008TD |
D9016TD |
|
Channel |
8CH |
16CH |
|
Video Input Format |
NTSC / PAL : BNC 8CH In / 2CH Out |
NTSC / PAL : BNC 16CH In / 2CH Out |
|
Display Resolution |
PAL/NTSC;D1704 × 576/704× 480 |
|
|
Recording Frame Rate&Resolution |
PLAYBACK:CIF352× 288/352× 240 s |
|
|
|
||
|
Compression Method |
Video H.264 Audio ADPCM |
|
|
Hard Disk Capacity |
Over 500G Bytes , SATA HDDsx4 or SATA HDDsx2 & IDE HDDsx2 |
|
|
Recording Time |
23 days with 500GB HD @ 25 fps for Continuous Recording mode |
|
|
Recording Mode |
Continuous, Motion detection, Sensor activated, Time schedule |
|
|
Sensors, Alarm |
8 Input, 3 Output |
16 Input, 3 Output |
|
Audio |
4CH In , 1CH Out |
|
|
Network |
RJ-45 |
|
|
Backup |
2 USB 2.0 ports for USB 2.0 disk drives, DVD+RW, DVD+R, DVD-R, card readers, HDD, etc. Internal DVD models: DVD+RW, DVD+R, DVD-R |
|
|
PTZ |
RS-232 RS-485 |
|
|
IR Remote Control Unit |
Yes |
|
|
VGA output |
included |
|
|
Power Supply |
220V±25%;50HZ±2%/110V 60HZ, 25W |
|
|
Dimension |
441(L)×460(W)×89(H)mm |
|
|
