Installing WSAD

In order to allow importing of preferences (variables, shortcut keys..) please install the WSAD to the following directory:

D:\Program Files\IBM\WebSphere Studio.

The installation kit can be found in K:\Dev Soft\WSAD V5.1

a.      Start the installation by launching wsadcd1\ launchpad.exe. Install the WSAD + WebSphereExpress 5.0. Do not install WebSphere 4.0. During the installation you will be prompted to insert CD 2, which is in wsadcd2.

b.      Install IBM Agent Controller from CD 3

c.      Install the following plugins (from the installation dir\plugins):

Jalopy -

after installing import Mind convention

windows-> Jalopi preferences-> import ( from N:\Jalopy\Mind Coding Convention.xml)

Jad - (not essential)

After installing, get the jad.exe and put it in your computer.

windows-> preferences

java ->jadClipse path to decompiler should be set.

Plugin installation is done by placing the plugin files under:

D:\Program Files\IBM\WebSphere Studio\Application Developer\v5.1\eclipse\plugins

and restarting the WebSphere.

Creating the J2EE environment

a.      Create folder for the workspace and checkout all workspace files from the Starteam (from V6.0 project).

b.      Create a folder for the projects, and checkout all files from the Star Team (from V6.0 project)

c.      Create a folder for the external libraries, and checkout all files from the Star Team (from V6.0 project) the default path is d:\jw\mb60\lib.

d.      Open the Web Sphere in the new workspace

e.      Checkout the WebSphere settings from setting/config.epf and import them into the workspace: Window->preference->import

f.        Define the 1.4.1_05 JRE (windows->preference ->installed JREs) and set it as the default JRE.

g.      Go to windows->preference ->java->classpath variables and change the following variables:

Lib60 (default D:\Jw\mb60\lib)

JDBC8i (default D:\oracle\ora81)

h.      Import projects in the following order:

Utils

Common

J2ee utils

CSR core

CSR api

CSR ear

CSR web

i.         Rebuild all projects

Creating a server project

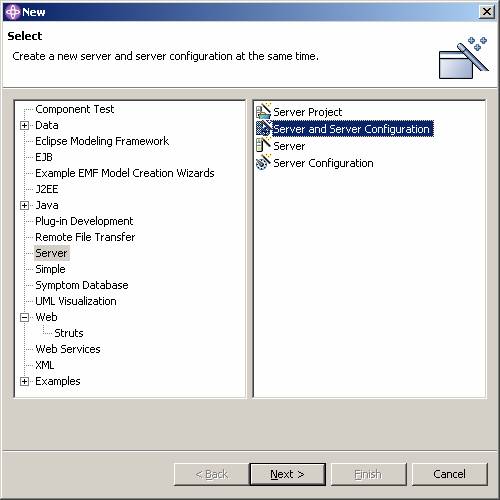

Click File->new->other->Server->Server and server configuration

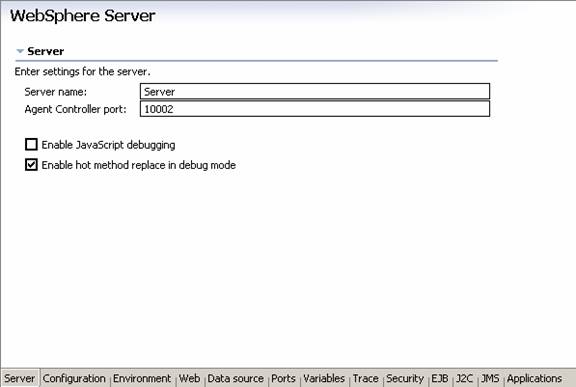

In the J2EE prespective, double click the server node in the newly created server project:

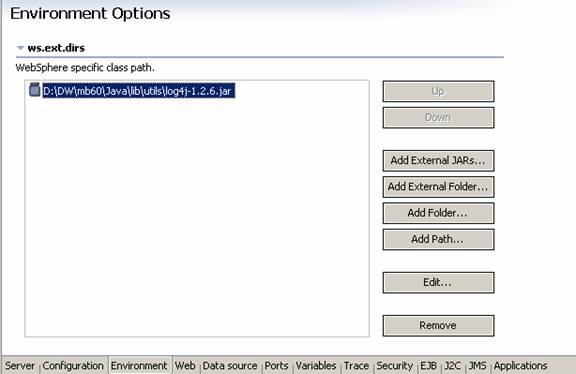

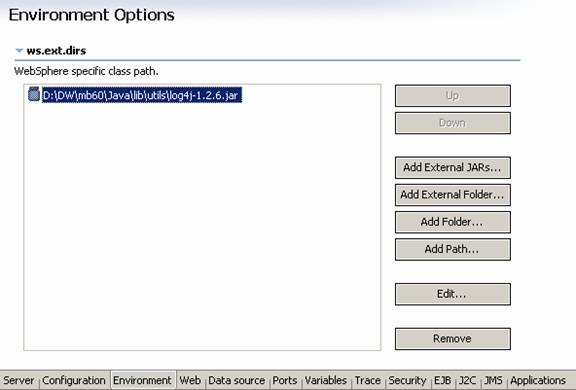

Add the log4J jar file to the Server environment:

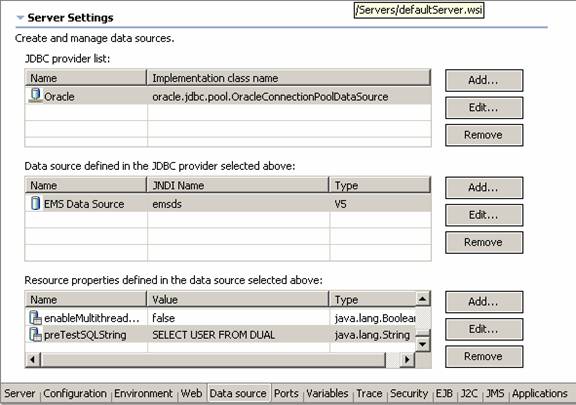

Open server environment configuration -> Data source (Click on the selected server in the servers tab).

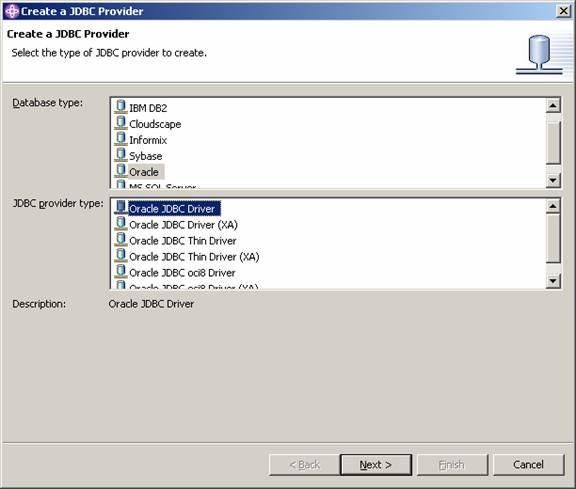

Press on the Add button of the JDBC provider list group.

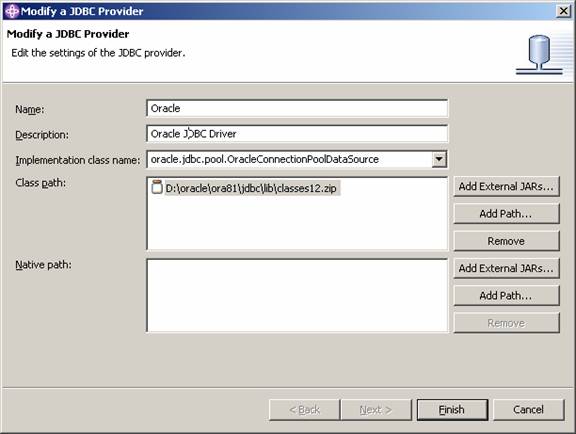

The class path can be defined directly to the JDBC folder or using oracle environment parameter $/classess12.jar.

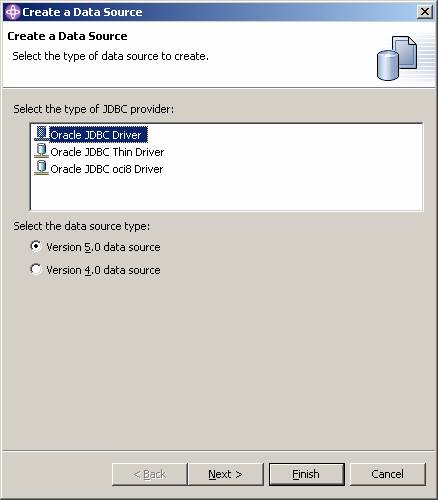

Press on the Add button of the 'Data source.' group.

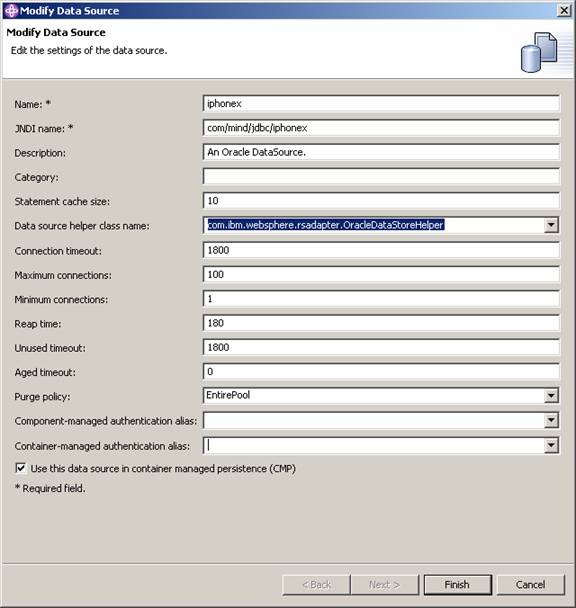

Press Next. Fill the following screen as follows:

Define JNDI name this value will be used in order to lookup for the data source in the code.

Component - managed authentication alias/ Component - managed authentication alias should be the DB user (e.g. mind/mind) this user is defined in the JAAS tab (see below).

Edit the URL properties:

Change the value field: jdbc:oracle:thin:@localhost:1521:Bill

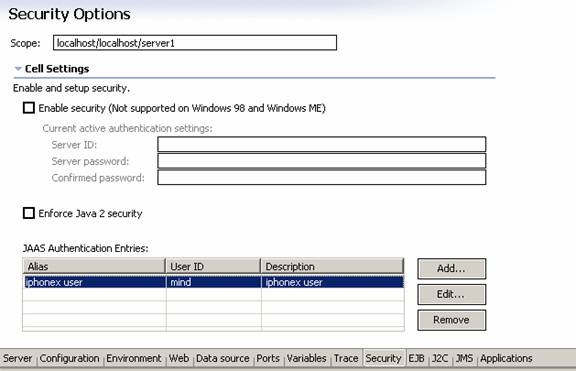

Open the security tab in the server configuration file:

Press on the Add button in order to add the DB user.

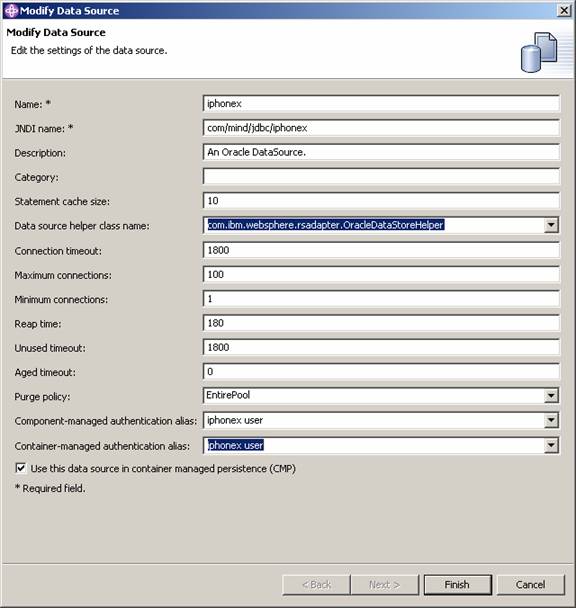

Return to the modify data source dialog and change the authentication alias to the one you just created:
