ViewAnalog

Setup

The programs are installed under the same structure as ICAP/4Windows version 8.x.x. The ViewAnalog integration module is placed in the SN directory. (Spicenet 5 executables are not installed 22122i83w but all support other files are.) The following sections describe the operations necessary to complete the setup.

WorkView Office

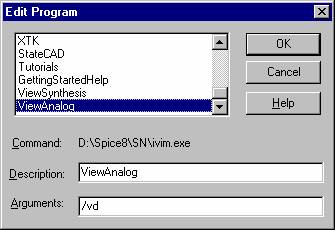

Add an item to the ViewOffice toolbar that starts the ViewAnalog integration module. The following figure describes the settings for this item.

The /vd starts the integration module initialized to ViewDraw. This command line option is required!

ViewDraw

The following menu entries are to be added to ViewDraw. The order and names can be altered if necessary.

All menu items call the same executable. The command line arguments change for each function. The following table lists the command line arguments to be used.

Simulation Setup /ec

Simulate /rs

Simulation Control /br

Simulator Syntax Help /hlp

Alter Value or Temp /alt

Analog Properties /lb

Parts Browser /pp

DC Operating Point /op

Test Point /tp
