Associate a Feature Control Frame to a View (UG V15-16)
Problem:

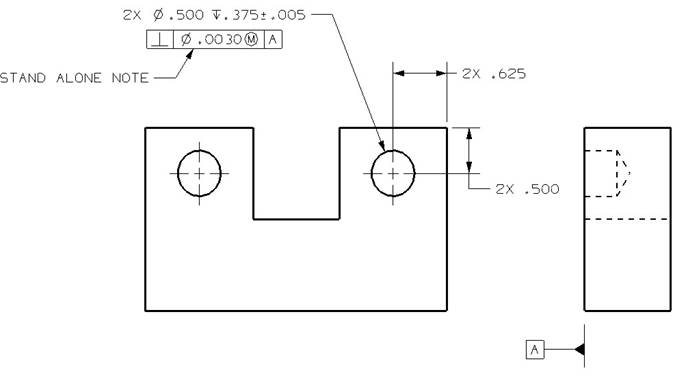

A feature control frame that was added to a drawing as a stand alone note using
the Annotation Editor cannot be associat 19419y2419t ed to a view using Drawing | Edit
View, Associate Note. Therefore, when the view is moved, the feature
control frame will not move with it. You have to manually relocate the feature
control frame using either Edit | Transform or Move Drafting
Object Origin.
Solution:
Add a note to the drawing with temporary characters and associate it to the
desired view. Then edit the note to reflect the required feature control frame.
Now, when the view is moved, the feature control frame will follow.
Submitted by Mike Kay, Principal Designer, Zimmer Inc.
|
