Espec SH-241 climatic chamber

technical

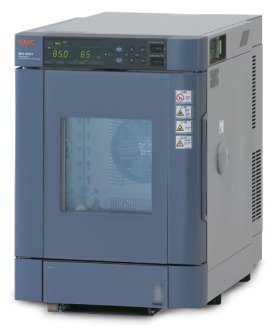

Espec SH-241 climatic chamber

Features

ESPEC'S EXCLUSIVE PROGRAM CONTROLLER:

  • Simple key input of temperature, (humidity), and time
  • Programmable operation with up to nine steps and 99 repeat loops
  • RS-485 communication port is standard

CHAMBER DESIGN FEATURES:

  • High performance with a space-saving footprint
  • One 1" (25mm) diameter cable 757c26h port on the right and left side
  • Removable humidity water tank for easy refilling
  • One adjustable stainless steel shelf
  • Temperature & humidity output terminals

SAFETY FEATURES:

  • Overheat protector
  • Humidifier boil-dry protector
  • Specimen power supply control terminal
  • Main power circuit breaker


Specifications

Item

Value

Specifications are for reference only. Please contact ESPEC for detailed information.

Interior Volume

0.8 cu. ft.
22 Liters

Interior Dimensions (W x D x H)

12" x 10" x 12"
300 x 250 x 300 mm

Exterior Dimensions (W x D x H)

17" x 29" x 25"
440 x 730 x 630 mm

Temperature Range

-40 to 150°C
-40 to 302°F

Humidity Range (see chart for detail)

30% - 95% RH

Average Change Rate

3°C/min heat & 1.2°C/min cool
-40 to 150°C (Empty)

Power

115V 12A max

Maximum Sound Level (1 meter away)

55 dBA

Temperature Fluctuation (at control sensor)

±0.3°C (up to 100°C)

Humidity Fluctuation (at control sensor)

±3
