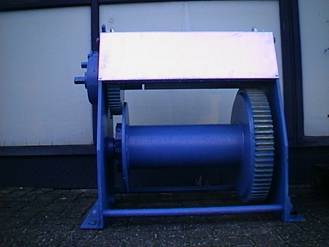

Manual mooring winch Model: EHL

Load pull in the 1st layer at slow speed

Load pull in the 6th layer at slow speed

Load pull in the 1st layer at quick speed

Load pull in the 6th layer at quick speed

Wire storage

Stroke per swing in the slow s 18518p1515s peed

Stroke per swing in the quick speed

Crank pressure

Wire rope diameter, according to DIN 3060/3066

Weight without wire

kN

6 kN

kN

1.8 kN

125 m

32 mm

114 mm

16 daN

12 mm

160 kg

kN

18 kN

kN

3.4 kN

130 m

25 mm

135 mm

18 daN

16 mm

350 kg

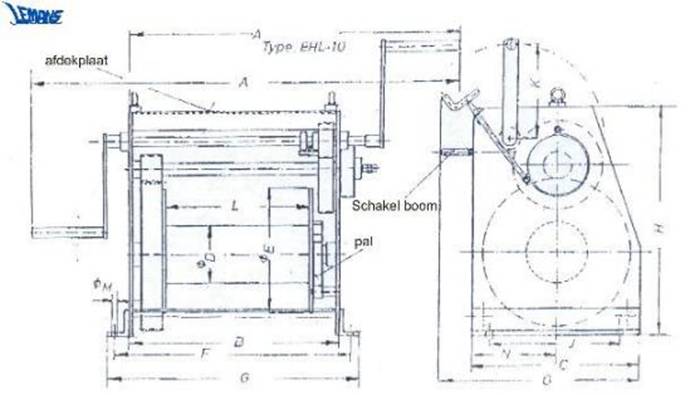

Type

A

B

C

D

E

F

G

H

J

K

L

M

N

O

EHL-10

EHL-20

EHL-30
