Working Changes Summary

Version	Date	Author	Summary
		Alberto Pasi	First Release
		Alberto Pasi	Add info on Definity Release 10 and IC rounting filed on CTI link

General Information

MAP-D configuration

Prerequisite

Definity Configuration

General Information

The scope of this document would be to summarize configuration to check on Definity before starting an AIC installation. This documenten will be divide by Definity Releases

To check the follow you must login on the Definity.

MAP-D configuration

We are assuming that the MAP-D will be enable with both ASAI and CVLAN Software.

Prerequisite

The MAP-D must be version 8.2.1 and the EnableIC procedure must be activate on the CVLAN signal to be used to integrate with AIC (I suggest to request to have all the signal enable).

telnet to the MAP-D and login into it

Main Menu

1. Login/Password Administration

2. TCP/IP Administration...

3. Port Administration...

4. Maintenance...

5. DLG Port Status/Control

6. CV/LAN Port Status/Control

7. Exit

view/add/delete user logins or modify passwords

Press 3

Port Administration

1. Application Port Assignment

2. DLG Administration

3. CV/LAN Administration

4. Exit

assign applications to ports

Press 1 only if the MAP-D have ASAI and CVLAN software, if not go to 1.1.1.4

Port Administration

Application Port Assignment

01 CVLAN

02 CVLAN

03 CVLAN

04 CVLAN

05 DLG

06 DLG

07 DLG

08 DLG

09 DLG

10 DLG

11 DLG

12 DLG

Press APPL to cycle thru application choices.

CANCEL REFRESH ENTER HELP APPL

Associate the fisical port (from 01-12 that will be used to create the station ADJLK on the Definity) to the CVLAN application.

Move with the arrow keys on the desidered port and pressing the 'F6' button switch to the CVLAN application.

Press that 'F3' to accept the selection

Port Administration

1. Application Port Assignment

2. DLG Administration

3. CV/LAN Administration

4. Exit

assign applications to ports

Press 3 to go on the CV/LAN Administration

CV/LAN Administration

Node ID Port Heartbeat State Number of Clients

signal01 1 off 1

signal02 2 off 1

signal03 3 off 1

signal04

signal05

signal06

signal07

signal08

Press STATE, CLIENT, or PORT to effect this entry

CANCEL REFRESH CLIENT HELP STATE UPDATE PORT

Move with the arrow keye to the signal we'd like to configure and press 'F8' to associate the port to the signal.

Press 'F4' to associate the IP Address of the AIC Telephony Server.

o Press 'F3' to add the IP address

o Press 'F3' to save it

Verify that heartbeat state is set to off, if not press 'F6' to disable it

Definity Configuration

Definity Release 8

Depending on the load version some field could be different

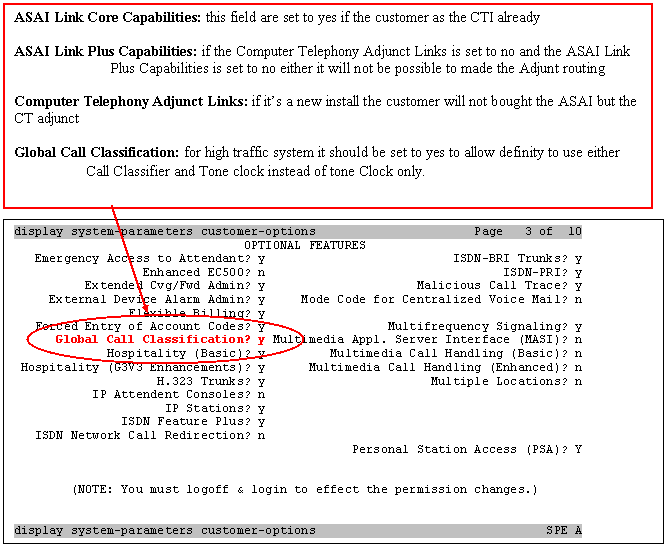

Write Display System-Customer Option, press ENTER and check the follow

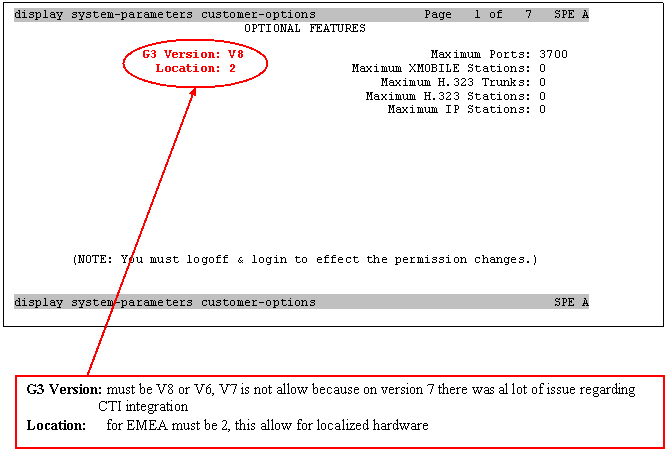

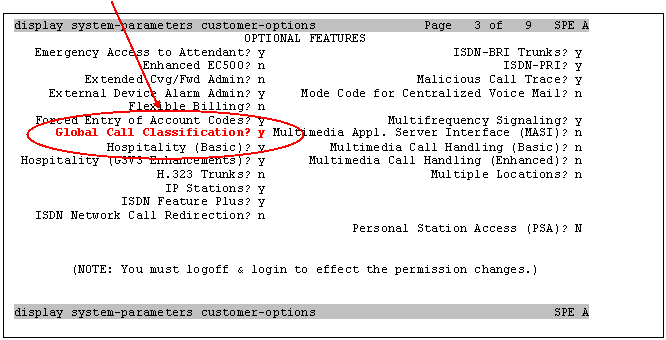

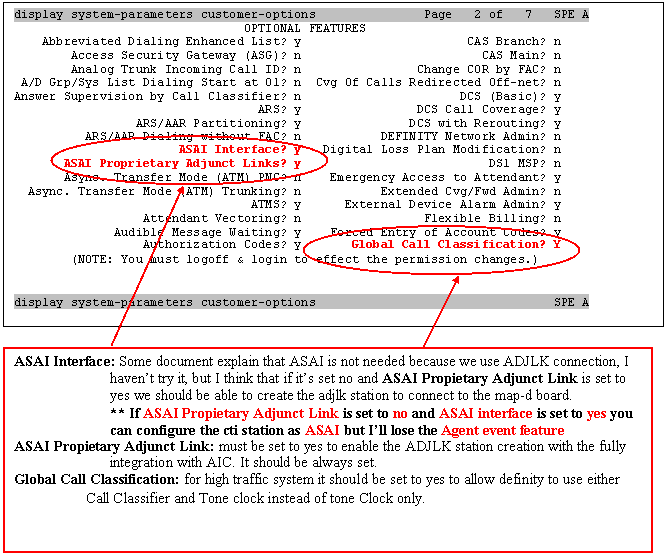

display system-parameters customer-options Page 3 of 7 SPE A

OPTIONAL FEATURES

Hospitality (Basic)? y PNC Duplication? y

Hospitality (G3V3 Enhancements)? y

H.323 Trunks? n Processor and System MSP? y

IP Stations? n Private Networking? y

ISDN Feature Plus? n Restrict Call Forward Off Net? y

ISDN Network Call Redirection? n Secondary Data Module? y

ISDN-BRI Trunks? y Station and Trunk MSP? y

ISDN-PRI? y

Malicious Call Trace? y Tenant Partitioning? y

Mode Code for Centralized Voice Mail? n Terminal Trans. Init. (TTI)? y

Mode Code Interface? y Time of Day Routing? y

Multifrequency Signaling? y Uniform Dialing Plan? y

Multimedia Appl. Server Interface (MASI)? n Usage Allocation Enhancements? y

Multimedia Call Handling (Enhanced)? n Wideband Switching? n

Multiple Locations? n Wireless? n

Personal Station Access (PSA)? n

(NOTE: You must logoff & login to effect the permission changes.)

display system-parameters customer-options SPE A

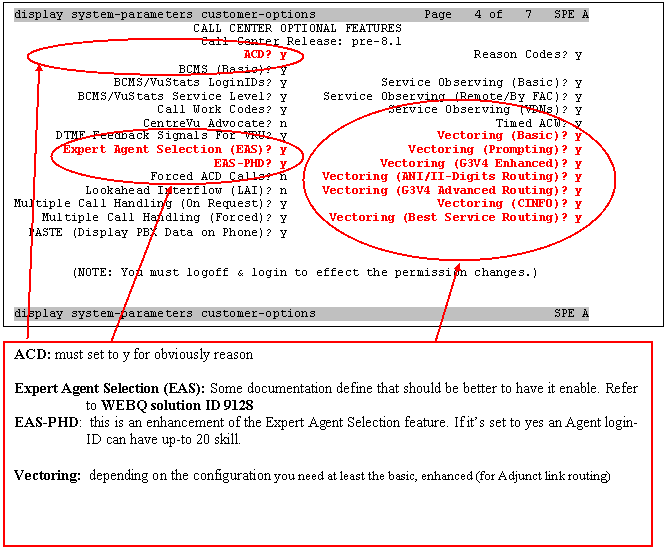

display system-parameters customer-options Page 5 of 7 SPE A

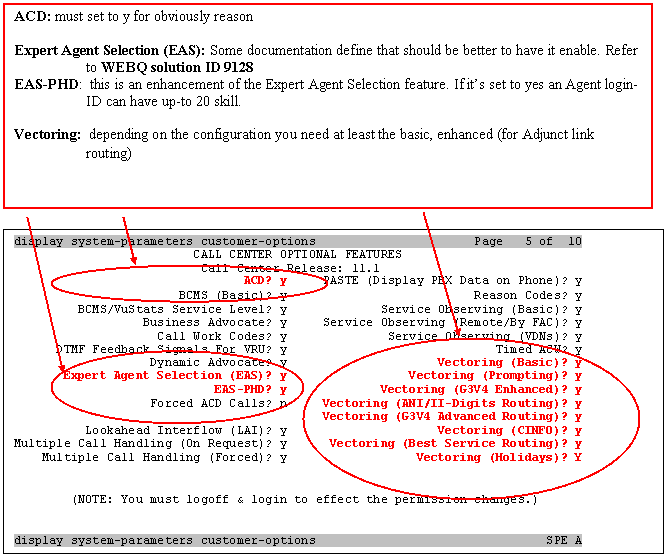

CALL CENTER OPTIONAL FEATURES

VDN of Origin Announcement? y VDN Return Destination? y

VuStats? y VuStats (G3V4 Enhanced)? y

Logged-In ACD Agents: 300

Logged-In IP Softphone Agents: 5200

(NOTE: You must logoff & login to effect the permission changes.)

display system-parameters customer-options SPE A

display system-parameters customer-options Page 6 of 7 SPE A

QSIG OPTIONAL FEATURES

Basic Call Setup? n

Basic Supplementary Services? n

Centralized Attendant? n

Interworking with DCS? n

Supplementary Services with Rerouting? n

Transfer into Lucent QSIG Voice Mail? n

Value-Added Lucent (VALU)? N

(NOTE: You must logoff & login to effect the permission changes.)

display system-parameters customer-options SPE A

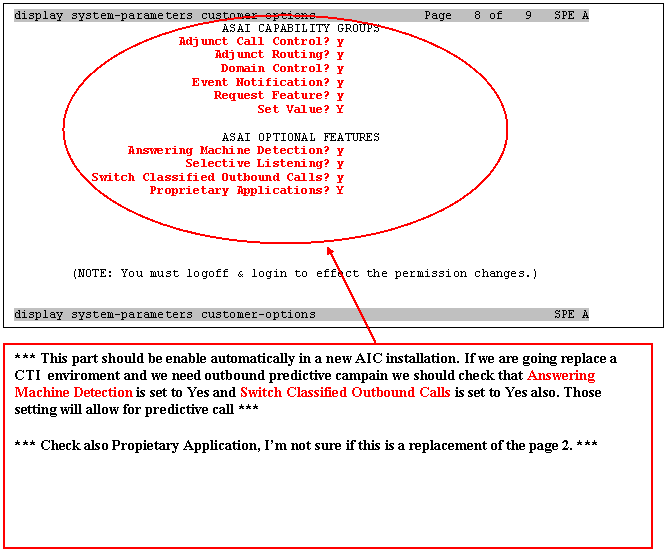

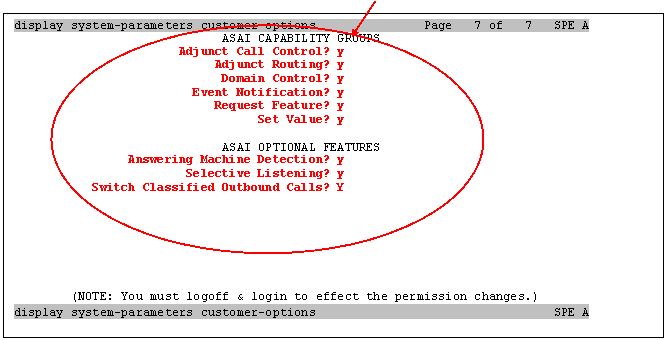

*** This part should be enable automatically in a new AIC installation. If we are going replace a CTI enviroment and we need outbound predictive campain we should check that Answering Machine Detection is set to Yes and Switch Classified Outbound Calls is set to Yes also. Those setting will allow for predictive call ***

Write Display (Add to create a new one) station XXXXX, press ENTER

display station XXXXX Page 1 of 2 SPE A

STATION

Extension: XXXXX

Type: ADJLK TN: 1

Port: 03A1302 COR: 1

Name: $AIC COS: 1

Hunt-to Station:

STATION OPTIONS

Loss Group: 3

BRI OPTIONS

XID? n Fixed TEI? y TEI:

MIM Support? n

CRV Length:

display station XXXXX SPE A

display station XXXXX Page 2 of 2 SPE A

STATION

FEATURE OPTIONS

Event Minimization? n

Per Station CPN - Send Calling Number?

Audible Message Waiting? N

display station XXXX SPE A

Definity Release 9

Depending on the load version some field could be different

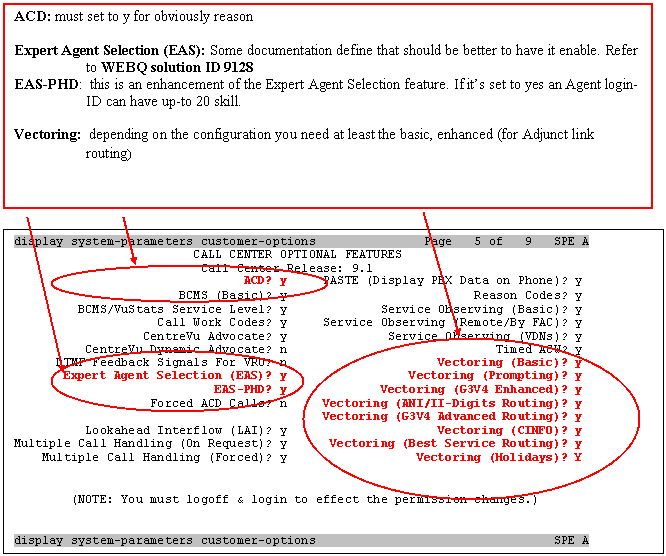

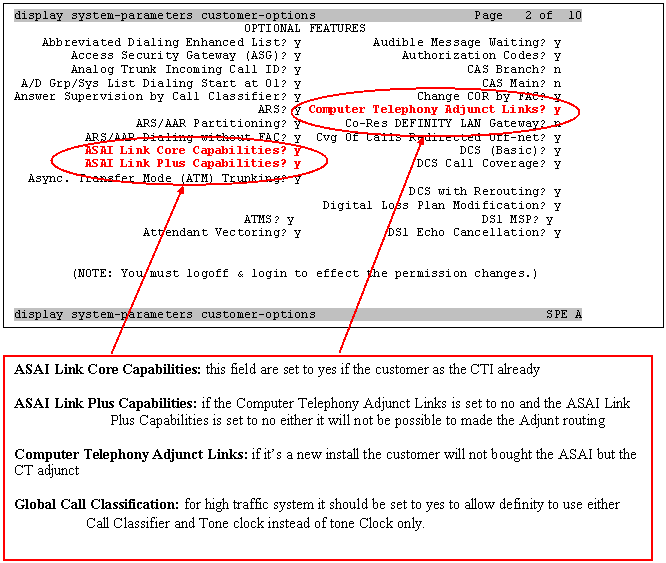

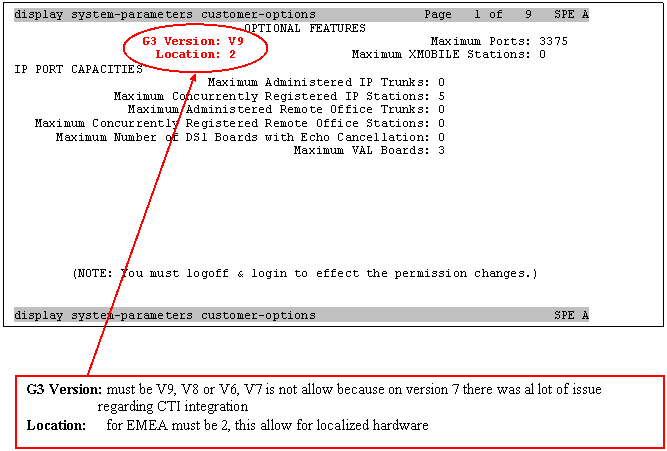

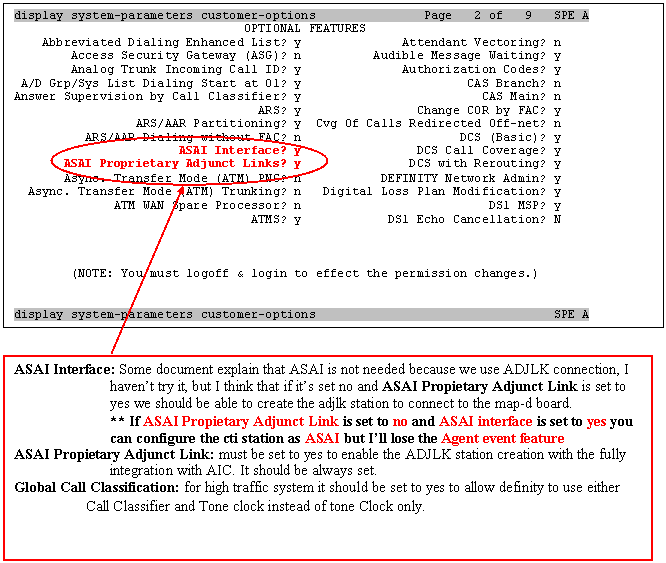

Write Display System-Customer Option, press ENTER and check the follow

display system-parameters customer-options Page 4 of 9 SPE A

OPTIONAL FEATURES

PNC Duplication? y Tenant Partitioning? n

Terminal Trans. Init. (TTI)? y

Processor and System MSP? y Time of Day Routing? y

Private Networking? y Uniform Dialing Plan? y

Usage Allocation Enhancements? y

R9.5 Capabilities? y VAL Full 1-Hour Capacity? y

Remote Office? n

Restrict Call Forward Off Net? y Wideband Switching? n

Secondary Data Module? y Wireless? n

Station and Trunk MSP? y

Station as Virtual Extension? y

(NOTE: You must logoff & login to effect the permission changes.)

display system-parameters customer-options SPE A

display system-parameters customer-options Page 6 of 9 SPE A

CALL CENTER OPTIONAL FEATURES

VDN of Origin Announcement? y VuStats? y

VDN Return Destination? y VuStats (G3V4 Enhanced)? y

Logged-In ACD Agents: 1000 Logged-In CentreVu Advocate Agents: 1000

Logged-In IP Softphone Agents: 5200

(NOTE: You must logoff & login to effect the permission changes.)

display system-parameters customer-options SPE A

display system-parameters customer-options Page 7 of 9 SPE A

QSIG OPTIONAL FEATURES

Basic Call Setup? y

Basic Supplementary Services? y

Centralized Attendant? n

Interworking with DCS? y

Supplementary Services with Rerouting? y

Transfer into QSIG Voice Mail? n

Value-Added (VALU)? N

(NOTE: You must logoff & login to effect the permission changes.)

display system-parameters customer-options SPE A

display system-parameters customer-options Page 9 of 9 SPE A

MAXIMUM IP REGISTRATIONS BY PRODUCT ID

Product ID Rel. Limit Product ID Rel. Limit Product ID Rel. Limit

IP_Agent : 2 : 0 : 0

IP_Phone : 2 : 0 : 0

IP_ROMax : 10000 : 0 : 0

IP_Soft : 2 : 0 : 0

: 0 : 0 : 0

(NOTE: You must logoff & login to effect the permission changes.)

display system-parameters customer-options SPE A

Write Display (Add to create a new one) station XXXXX, press ENTER

display station XXXXX Page 1 of 2 SPE A

STATION

Extension: XXXXX BCC: 0

Type: ADJLK TN: 1

Port: 03A1302 COR: 1

Name: $AIC COS: 1

Hunt-to Station:

STATION OPTIONS

Loss Group: 3

BRI OPTIONS

XID? n Fixed TEI? y TEI:

MIM Support? n

CRV Length:

display station XXXXX SPE A

display station XXXXX Page 2 of 2 SPE A

STATION

FEATURE OPTIONS

Event Minimization? n

Per Station CPN - Send Calling Number?

Service Link Mode: as-neededSpecial Character for Restricted Number? n

Multimedia Mode: basic Audible Message Waiting? n

Coverage After Forwarding? s

MWI Served User Type:

display station XXXX SPE A

Definity Release 10

Depending on the load version some field could be different

display system-parameters customer-options Page 4 of 10

OPTIONAL FEATURES

Tenant Partitioning? n

Terminal Trans. Init. (TTI)? y

Processor and System MSP? n Time of Day Routing? y

Private Networking? y Uniform Dialing Plan? y

VAL Full 1-Hour Capacity? y

Remote Office? n

Restrict Call Forward Off Net? y Wideband Switching? n

Secondary Data Module? y Wireless? n

Station and Trunk MSP? n

Station as Virtual Extension? y

Survivable Remote Processor? n

System Management Data Transfer? y

Usage Allocation Enhancements? Y

(NOTE: You must logoff & login to effect the permission changes.)

display system-parameters customer-options SPE A

display system-parameters customer-options Page 6 of 10

CALL CENTER OPTIONAL FEATURES

VDN of Origin Announcement? y VuStats? y

VDN Return Destination? y VuStats (G3V4 Enhanced)? Y

USED

Logged-In ACD Agents: 221 0

Logged-In Advocate Agents: 0 0

Logged-In IP Softphone Agents: 5 0

(NOTE: You must logoff & login to effect the permission changes.)

display system-parameters customer-options SPE A

display system-parameters customer-options Page 7 of 10

QSIG OPTIONAL FEATURES

Basic Call Setup? y

Basic Supplementary Services? y

Centralized Attendant? y

Interworking with DCS? y

Supplementary Services with Rerouting? y

Transfer into QSIG Voice Mail? y

Value-Added (VALU)? Y

(NOTE: You must logoff & login to effect the permission changes.)

display system-parameters customer- options SPE A

display system-parameters customer-options Page 9 of 10

MAXIMUM IP REGISTRATIONS BY PRODUCT ID

Product ID Rel. Limit Used

IP_Agent : 100 0

IP_IPA_A : 0 0

IP_IPA_B : 0 0

IP_IPA_C : 0 0

IP_Phone : 100 1

IP_ROMax : 900 0

IP_Soft : 100 0

IP_eCons : 0 0

: 0 0

(NOTE: You must logoff & login to effect the permission changes.)

display system-parameters customer-options SPE A

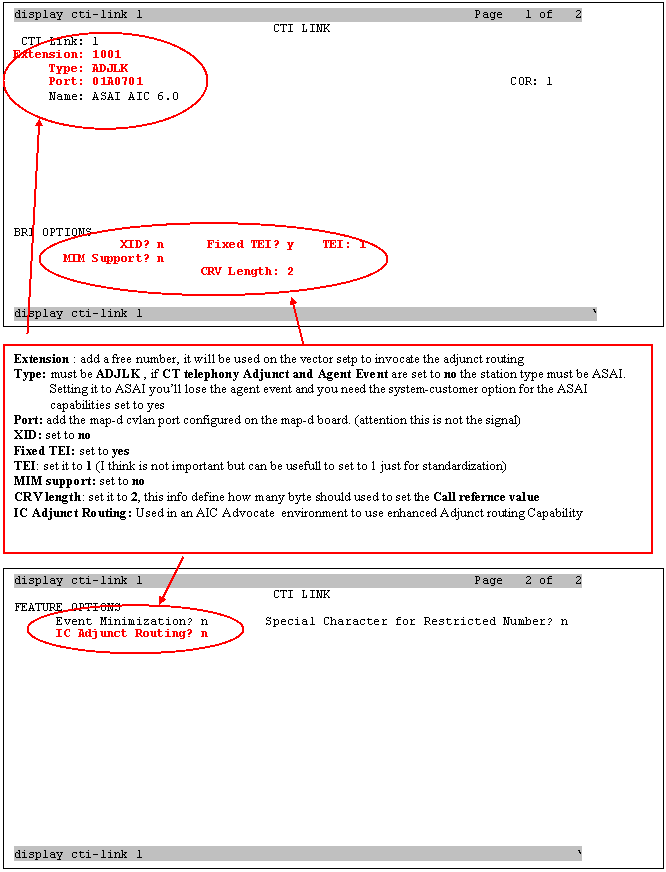

Write Display (Add to create a new one) cti-link (from 1 to n) , press ENTER

display cti-link 1 Page 2 of 2

CTI LINK

FEATURE OPTIONS

Event Minimization? n Special Character for Restricted Number? n

display cti-link 1 '

display cti-link 1 Page 1 of 2

CTI LINK

CTI Link: 1

Extension: 1001

Type: ADJLK

Port: 01A0701 COR: 1

Name: ASAI AIC 6.0

BRI OPTIONS

XID? n Fixed TEI? y TEI: 1

MIM Support? n

CRV Length: 2

display cti-link 1 '

Definity Release 11

Depending on the load version some field could be different

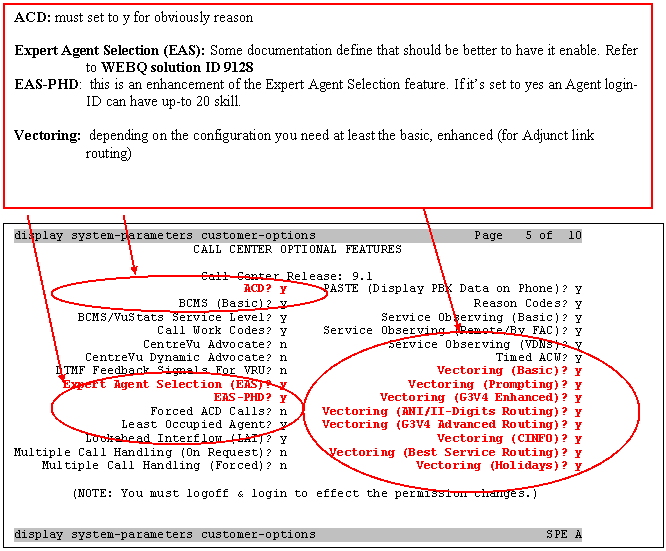

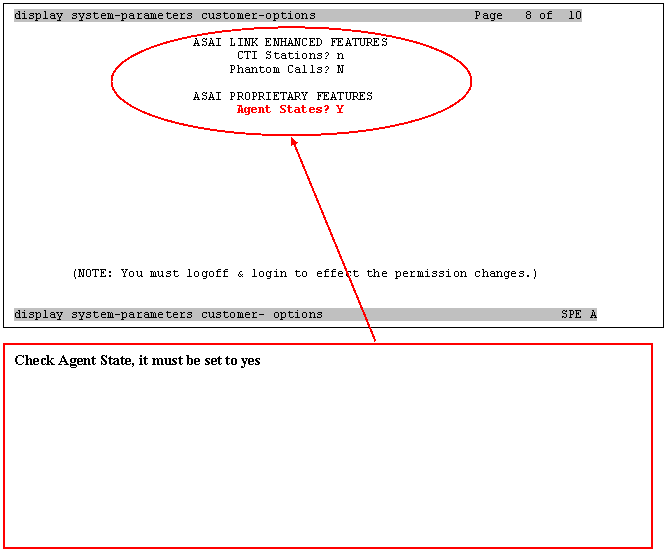

Write Display System-Customer Option, press ENTER and check the follow

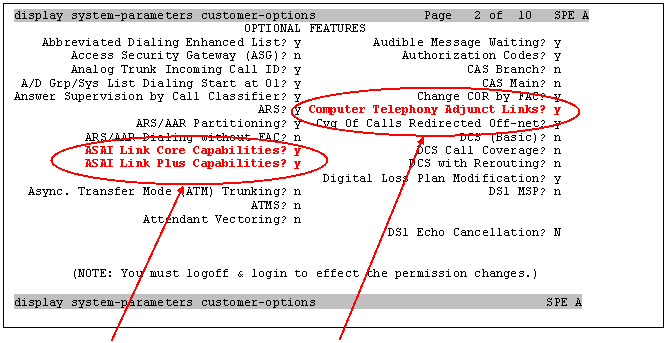

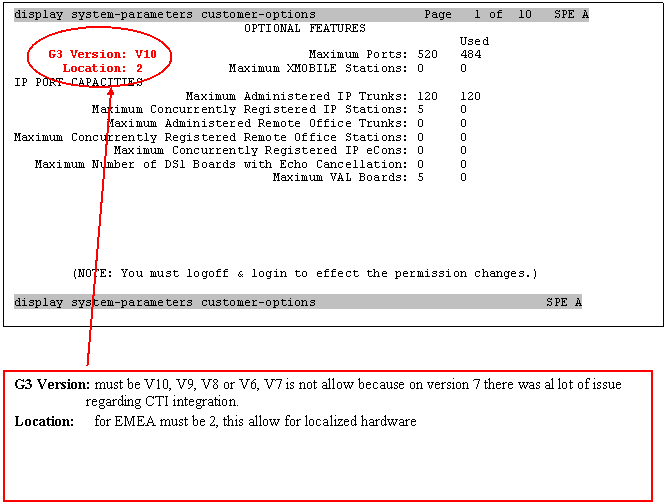

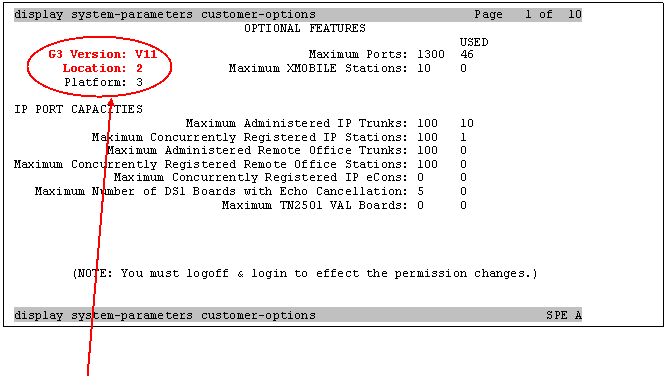

G3 Version: must be V11, V10, V9, V8 or V6, V7 is not allow because on version 7 there was al lot of issue regarding CTI integration.

There is a know BUG on load 65 and previous version regarding the Predictive call, so if you plan to use this feature the customer must upgrade to load 110.4 or above

Location: for EMEA must be 2, this allow for localized hardware

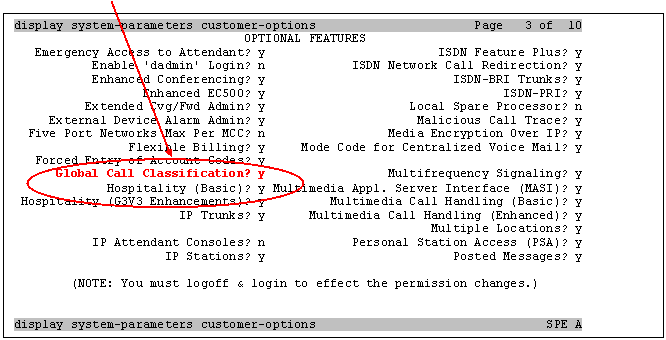

display system-parameters customer-options Page 4 of 10

OPTIONAL FEATURES

Tenant Partitioning? n

Port Network Support? y Terminal Trans. Init. (TTI)? y

Time of Day Routing? y

Processor and System MSP? y Uniform Dialing Plan? y

Private Networking? y Usage Allocation Enhancements? y

TN2501 VAL Maximum Capacity? y

Remote Office? y Wideband Switching? y

Restrict Call Forward Off Net? y Wireless? y

Secondary Data Module? y

Station and Trunk MSP? y

Station as Virtual Extension? y

System Management Data Transfer? y

(NOTE: You must logoff & login to effect the permission changes.)

display system-parameters customer-options SPE A

display system-parameters customer-options Page 6 of 10

CALL CENTER OPTIONAL FEATURES

VDN of Origin Announcement? y VuStats? y

VDN Return Destination? y VuStats (G3V4 Enhanced)? Y

USED

Logged-In ACD Agents: 500 0

Logged-In Advocate Agents: 500 0

Logged-In IP Softphone Agents: 500 0

(NOTE: You must logoff & login to effect the permission changes.)

display system-parameters customer-options SPE A

display system-parameters customer-options Page 7 of 10

QSIG OPTIONAL FEATURES

Basic Call Setup? y

Basic Supplementary Services? y

Centralized Attendant? y

Interworking with DCS? y

Supplementary Services with Rerouting? y

Transfer into QSIG Voice Mail? y

Value-Added (VALU)? Y

(NOTE: You must logoff & login to effect the permission changes.)

display system-parameters customer- options SPE A

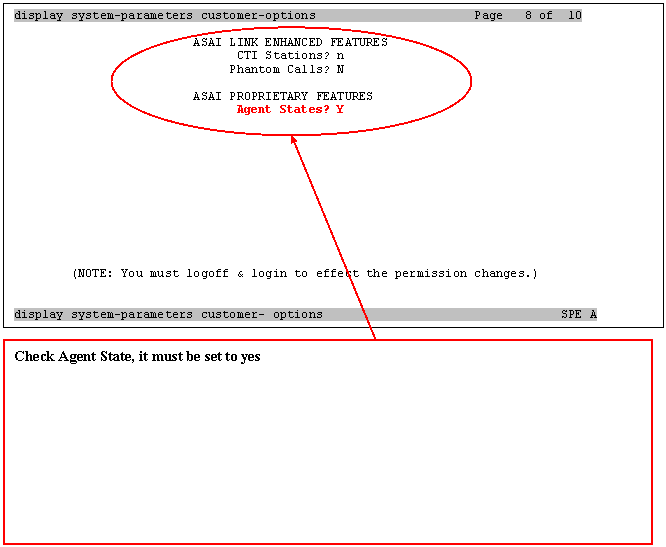

display system-parameters customer-options Page 9 of 10

MAXIMUM IP REGISTRATIONS BY PRODUCT ID

Product ID Rel. Limit Used

IP_Agent : 100 0

IP_IPA_A : 0 0

IP_IPA_B : 0 0

IP_IPA_C : 0 0

IP_Phone : 100 1

IP_ROMax : 900 0

IP_Soft : 100 0

IP_eCons : 0 0

: 0 0

(NOTE: You must logoff & login to effect the permission changes.)

display system-parameters customer-options SPE A

display system-parameters customer-options Page 10 of 10

MAXIMUM IP REGISTRATIONS BY PRODUCT ID

Product ID Rel. Limit Used

: 0 0

(NOTE: You must logoff & login to effect the permission changes.)

display system-parameters customer-options SPE A

Write Display (Add to create a new one) cti-link (from 1 to n) , press ENTER

Document Info

Accesari: 2572
Apreciat:

Comenteaza documentul:

Nu esti inregistrat
Trebuie sa fii utilizator inregistrat pentru a putea comenta

Creaza cont nou

A fost util?

Daca documentul a fost util si crezi ca merita
sa adaugi un link catre el la tine in site

Copiaza codul:
in pagina web a site-ului tau.

eCoduri.com - coduri postale, contabile, CAEN sau bancare

Politica de confidentialitate | Termenii si conditii de utilizare
