To configure the NetScreen-Remote client side VPN with XAuth, perform the following steps:

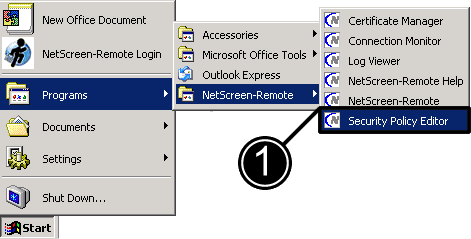

From the Start menu, select Programs, select NetScreen-Remote, and then click Security Policy Editor
From the Security Policy
Editor dialog box, click the 'Add a new co 11311u204l nnection' icon.
Enter a name for your new
connection.
For
this example, we used the default name New Connection
From Remote Party
Identity and Addressing, in the ID Type drop-down menu, click to select IP Subnet
In the Subnet and Mask text boxes, enter a Subnet and Mask.
For
this example, we used and

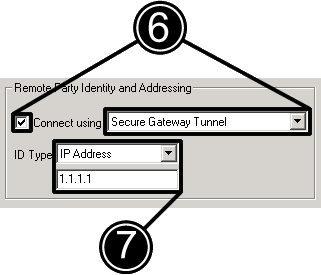

Click to select Connect using, and then from the drop-down menu, click to select Secure Gateway Tunnel
From the ID Type drop-down menu, click to select IP Address, then enter the untrusted IP Address of the Firewall.
For
this example, we have entered for the untrusted IP address of
the Firewall.
Click
the to expand New Connection

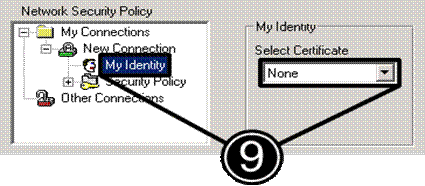

Click to select My Identity, and then from the Select
Certificate drop-down menu, click to select None

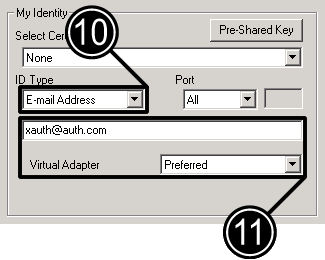

From the ID Type drop-down menu, click to select E-mail Address
Enter the email address
corresponding to the ID. From the Virtual Adapter drop-down menu, click to select Preferred.
For
this example, we have used [email protected]. This is the IKE user's simple
identity and not their username. The email address can be a username or an
actual email address; it does need to match the settings on the Juniper
Firewall.

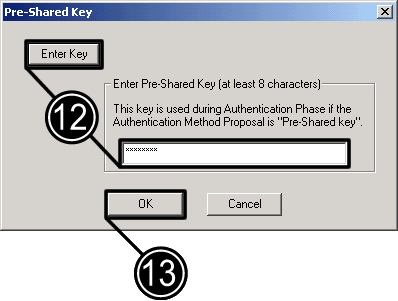

From
the Pre-Shared Key dialog box, click Enter Key, and then enter the Pre-Shared Key.
The
Pre-Shared Key will need to match the one
configured on the Firewall device for this connection.
Click OK.

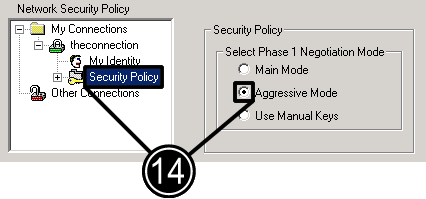

Click to select Security Policy, and then click to select Aggressive Mode
Click the to expand Security Policy
Click the to expand Authentication (Phase 1)
Click to select Proposal 1.
From the Authentication Method
drop-down menu, click to choose Pre-Shared Key; Extended Authentication.

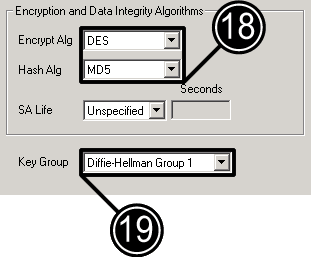

From the Encrypt Alg drop-down
menu, click to choose an encryption type. From the Hash Alg drop-down
menu, click to choose an authentication type.
For
this example, we have used DES for Encrypt Alg and MD5 for
Hash Alg.
From the Key Group drop-down menu, click to select Diffie-Hellman Group 1.
Click
the to expand Key Exchange
(Phase 2)
Click to select Proposal 1.
From the Encrypt Alg drop-down menu, click to choose
encryption type. From the Hash Alg drop-down menu, click to choose
authentication type.
For
this example, we have used DES for Encrypt Alg and MD5 for Hash Alg
In the Encapsulation drop-down menu, click to select Tunnel.
From the Security Policy
Editor dialog box, click File, and then click Save Changes
|
