Creating Symbols

Creating Symbols

Symbols can be made from paths with a variety of strokes and fills, groups, or text blocks.

To create a symbol using the menu commands:

Select the object you want 343q161d to convert into a symbol.

Choose Modify > Symbol > Convert to Symbol. This creates a symbol of the selected object and makes the selected object into an instance of that symbol.

or

Choose Modify > Symbol > Copy to Symbol. This creates a symbol of the selected object but leaves the selected object unchanged.

TIP

New symbols appear in the Library and are given the name Graphic-##

Figure 1. A new symbol appears in the Library under the name Graphic-01.

To create a symbol using the Library:

Select the object you want 343q161d to convert.

Choose New Graphic from the Library submenu

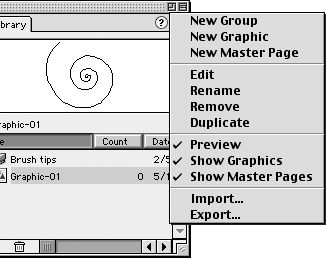

Figure 2. The Library menu contains commands for working with symbols

or

Click the New Symbol icon at the bottom of the Library. This creates a symbol of the selected object but leaves the selected object unchanged.

To duplicate a symbol:

Select the symbol you want to duplicate

Choose Duplicate from the Library submenu. A new symbol appears with the prefix Copy of before the name.

To change the name of a symbol:

Choose Rename from the Library menu. This highlights the name

Figure 3. Highlight the name to type a new name for a symbol.

Type the new name for the symbol.

TIP

You can also double-click to highlight the name.
