We have until now ignored the problem of memory management. We ask for more memory from the system, but we never release it, we are permanently leaking memory. This isn't a big problem in these small example applications, but we would surely run into trouble in bigger undertakings.

Memory is organized in a program in different areas:

The initial data area of the program. Here are stored compile time constants like the character strings we use, the tables we input as immediate program data, the space we allocate in fixed size arrays, and other items. This area is further divided into initialized data, and uninitialized data, that the program loader sets to zero before the program starts.

When you write a declaration like int data = 78; the data variable will be stored in the initialized data area. When you just write at the global level 848b12i int data; the variable will be stored in the uninitialized data area, and its value will be zero at program start.

The stack. Here is stored the procedure frame, i.e. the arguments and local variables of each function. This storage is dynamic: it grows and shrinks when procedures are called and they return. At any moment we have a stack pointer, stored in a machine register, that contains the machine address of the topmost position of the stack.

The heap. Here is the space that we obtain with malloc or equivalent routines. This also a dynamic data area, it grows when we allocate memory using malloc, and shrinks when we release the allocated memory with the free() library function.

There is no action needed from your side to manage the initial data area or the stack. The compiler takes care of all that.

The program however, manages the heap, i.e. it expects that you keep book exactly and without any errors from each piece of memory you allocate using malloc. This is a very exhausting undertaking that takes a lot of time and effort to get right. Things can be easy if you always free the allocated memory before leaving the function where they were allocated, but this is impossible in general, since there are functions that precisely return newly allocated memory for other sections of the program to use.

There is no other solution than to keep book in your head of each piece of RAM. Several errors, all of them fatal, can appear here:

You allocate memory and forget to free it. This is a memory leak.

You allocate memory, and you free it, but because of a complicated control flow (many ifs, whiles and other constructs) you free a piece of memory twice. This corrupts the whole memory allocation system, and in a few milliseconds all the memory of your program can be a horrible mess.

You allocate memory, you free it once, but you forget that you had assigned the memory pointer to another pointer, or left it in a structure, etc. This is the dangling pointer problem. A pointer that points to an invalid memory location.

Memory leaks provoke that the RAM space used by the program is always growing, eventually provoking a crash, if the program runs for enough time for this to become significant. In short-lived programs, this can have no consequences, and even be declared as a way of memory management. The lcc compiler for instance, always allocates memory without ever bothering to free it, relying upon the windows system to free the memory when the program exits.

Freeing a piece of RAM twice is much more serious than a simple memory leak. It can completely confuse the malloc() system, and provoke that the next allocated piece of RAM will be the same as another random piece of memory, a catastrophe in most cases. You write to a variable and without you knowing it, you are writing to another variable at the same time, destroying all data stored there.

More easy to find, since more or less it always provokes a trap, the dangling pointer problem can at any moment become the dreaded show stopper bug that crashes the whole program and makes the user of your program loose all the data he/she was working with.

I would be delighted to tell you how to avoid those bugs, but after more than 10 years working with the C language, I must confess to you that memory management bugs still plague my programs, as they plague all other C programmers.

The basic problem is that the human mind doesn't work like a machine, and here we are asking people (i.e. programmers) to be like machines and keep book exactly of all the many small pieces of RAM a program uses during its lifetime without ever making a mistake.

But there is a solution that I have implemented in lcc-win32. Lcc-win32 comes with an automatic memory manager (also called garbage collector in the literature) written by Hans Boehm. This automatic memory manager will do what you should do but do not want to do: take care of all the pieces of RAM for you.

Using the automatic memory manager you just allocate memory with GC_malloc instead of allocating it with malloc. The signature (i.e. the result type and type of arguments) is the same as malloc, so by just replacing all malloc by GC_malloc in your program you can benefit of the automatic memory manager without writing any new line of code.

The memory manager works by inspecting regularly your whole heap and stack address space, and checking if there is anywhere a reference to the memory it manages. If it doesn't find any references to a piece of memory it will mark that memory as free and recycle it. It is a very simple schema, taken to almost perfection by several years of work from the part of the authors.

To use the memory manager you should add the gc.lib library to your link statement or indicate that library in the IDE in the linker configuration tab.

Functions for memory allocation.

Memory layout under windows.

A 32 bit address can be used to address up to 4GB of RAM. From this potential address space, windows reserves for the system 2GB, leaving the other 2GB for each application. These addresses, of course, are virtual, since not all PCs have 2GB of real RAM installed. To the windows memory manager, those numbers are just placeholders that are used to find the real memory address.

Each 32-bit address is divided in three groups, two containing 10 bits, and the third 12 bits.

The translation goes as follows:

The higher order bits (31-21) are used to index a page of memory called the page directory. Each process contains its own page directory, filled with 1024 numbers of 32 bits each, called page description entry or PDE for short.

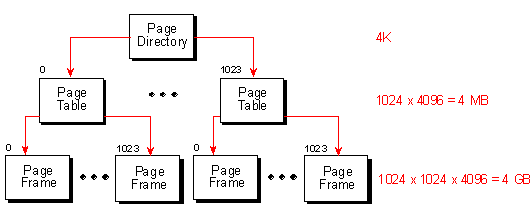

The PDE is used to get the address of another special page, called page table. The second group of bits (21-12) is used to get the offset in that page table. Once the page frame found, the remaining 12 bits are used to address an individual byte within the page frame. Here is a figure that visualizes the structure:

We see that a considerable amount of memory is used to. manage memory. To realize the whole 4GB address space, we would use 4MB of RAM. But this is not as bad as it looks like, since Windows is smart enough to fill these pages as needed. And anyway, 4MB is not even 0.1% of the total 4GB address space offered by the system.

Each process has its own page directory. This means that processes are protected from stray pointers in other programs. A bad pointer can't address anything outside the process address space. This is good news, compared to the horrible situation under windows 3.1 or even MSDOS, where a bad pointer would not only destroy the data of the application where it belonged, but destroyed data of other applications, making the whole system unstable. But this means too, that applications can't share data by sending just pointers around. A pointer is meaningful only in the application where it was created. Special mechanisms are needed (and provided by Windows) to allow sharing of data between applications. See inter-process communications.
