2 Watt Audio PreAmplifier

Notes:
This was one of the earliest circuits that I ever designed and built, in Spring 1982. At that time I had only an analogue meter and a calculator to work with. Although far from perfect, this amplifier does have a wide frequency response, low distortion, and is capable of driving an 8 ohm speaker to output levels of around 5 watts with slightly higher distortion. Any power supply in the range 12 to 18 Volts DC may be used.

Circuit Description

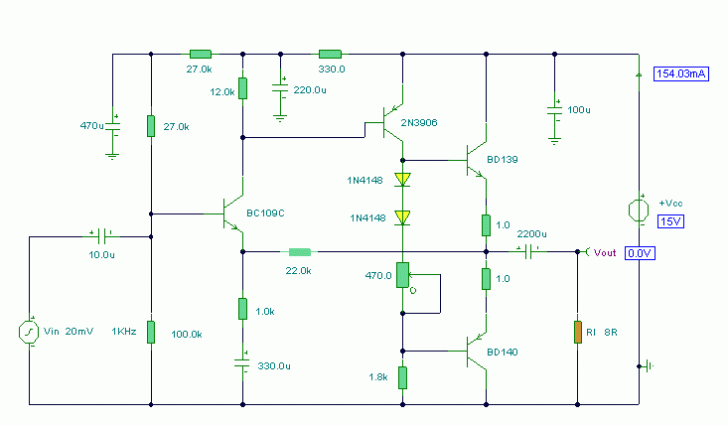

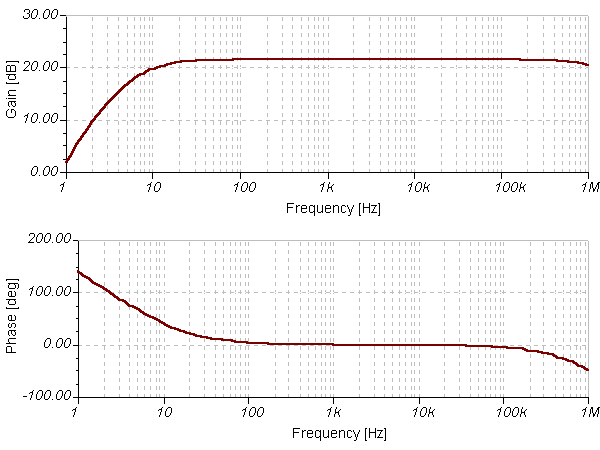

The amplifier operates in Class AB mode; the single 470R preset resistor controls the quiescent current flowing through the BD139/140 complimentary output transistors. Adjustment here, is a trade-off between low distortion and low quiescent current. Typically, under quiescent conditions, standby current may be 15 mA rising to 150 mA with a 50 mV 656i88g input signal. A simulated frequency response is shown below:

The circuit is DC biased so that the emitters of the BD139 and BD140 are at approximately half supply voltage, to allow for a maximum output voltage swing. All four transistors are direct coupled which ensures:-
(i) A good low frequency response
(ii) Temperature and bias change stability.

The BC109C and 2N3906 operate in common emitter. This alone will provide a very high open loop gain. The output BD139/140 pair operate in emitter follower, meeting the requirements to drive low impedance speakers. Overall gain is provided by the ratio of the 22k and 1k resistor. A heat sink on the BD139/140 pair is recommended but not essential, though the transistors will run 'hot' to the touch.

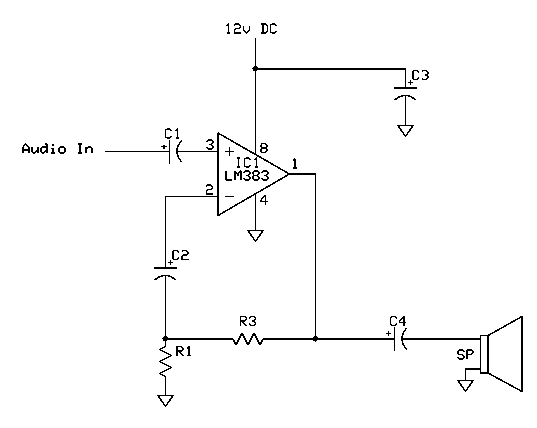

10 Watt Audio Amp

1. IC1 MUST be installed on a heat sink.
2. C3 is for filtering and to prevent oscillation and should not be omitted.
3. The circuit can be built on a perf board, universal solder board or PC board, the PC board is preferred. I built the circuit on a perf board and had to add a low value inductor at the input to prevent oscillation.
4. The circuit draws about 880 ma at 12 V.
5. By swapping the values of R1 and R3, you can turn this amplifier into a guitar amp with no preamp required.
6. If you can't find 2000uF, then replace C4 with a 2200uF unit.
7. If you add a 0.2uF capaciitor in series with a 1 ohm resistor to the output you can prevent oscillation of the circuit under certain conditions.
