SCHEMELE EXPLODATE SI CODURILE PIESELOR PENTRU HONDA GCV160E de tipul N2 E8

tehnica mecanica





Codul piesei

DISTRIBUTIA


14320-ZL8-010

PULLEY COMP., CAMSHAFT


14324-ZL8-000

SHAFT, CAM PULLEY


14400-ZL8-013

BELT, TIMING (84HU7 G-200)


14461-ZL8-000

SHAFT, ROCKER ARM



SCREW, TAPPET ADJUSTING



NUT, TAPPET ADJUSTING


91301-Z0M-003

O-RING, 6.8X1.9


14431-Z0J-000

ARM, IN. VALVE ROCKER


14441-Z0J-000

ARM, EX. VALVE ROCKER


SCHEMELE EXPLODATE SI CODURILE PIESELOR PENTRU


HONDA GCV160E de tipul N2 E8






Codul piesei

DEMARORUL


28400-ZM0-023 919e46j ZA

STARTER ASSY., RECOIL *NH1*


28400-ZM0-023 919e46j ZC

STARTER ASSY., RECOIL *R280*


28461-ZL8-003

GRIP, STARTER


28462-ZL8-003

ROPE, RECOIL STARTER


90201-ZM0-000

NUT, FLANGE, 6MM















Codul piesei

PROTECTIE VOLANTA


16854-ZH8-000

RUBBER, SUPPORTER (107MM)


16950-ZG9-M03

COCK ASSY., FUEL


16956-ZG9-M00

BRACKET, FUEL COCK


17620-Z0M-000

CAP ASSY., FUEL TANK


17702-ZM0-000

TUBE, FUEL


19610-Z1L-000ZA

COVER COMP., FAN *NH1*


19610-Z1L-000ZB

COVER COMP., FAN *R280*


19610-ZM0-010ZA

COVER COMP., FAN *NH1*


19610-ZM0-010ZD

COVER COMP., FAN *R280*


33609-GK4-620

COLLAR, FR. WINKER


90043-ZL8-000

BOLT, STUD (H=42.5MM)



SCREW-WASHER, 5X10



TUBE, FUEL, 5.3X150(95001-55001-60M)



CLIP, TUBE (B8)



CLIP, TUBE (B10)



CLIP, TUBE (C9)


16950-ZM0-003

COCK ASSY., FUEL


17702-ZM0-800

TUBE, FUEL



CLIP, TUBE (B8)


19619-ZL8-300

COLLAR, FAN COVER



SPONGE, FUEL CAP BREATHER


17624-ZE7-000

PACKING, FUEL CAP






























Codul piesei

CARBURATOR



PACKING SET


16013-ZL1-003

FLOAT SET


16028-ZE0-005

SCREW SET


16029-ZG0-901

SCREW SET (THROTTLE STOP)


16100-ZM0-803

CARBURETOR ASSY. (BB62B D)


16100-ZM0-804

CARBURETOR ASSY. (BB62B E)


16155-ZM0-003

VALVE, FLOAT


16155-ZM0-013

VALVE, FLOAT


16166-ZM0-003

NOZZLE, MAIN


16211-ZL8-000

INSULATOR, CARBURETOR


16212-ZL8-000

PACKING, INSULATOR



PACKING, CARBURETOR


16228-ZL8-000

PACKING, CARBURETOR


19650-ZM0-000

GUIDE COMP., AIR


93500-050061H

SCREW, PAN, 5X6



JET, MAIN, #60



JET, MAIN, #62



JET, MAIN, #65


16024-ZE1-811

SCREW SET, DRAIN

023 919e46j

16016-ZG0-W00

SCREW SET



CHAMBER SET, FLOAT



Codul piesei

FILTRU AER


15721-ZM0-000

TUBE, BREATHER


17211-ZL8-023 919e46j

ELEMENT, AIR CLEANER


17220-ZM0-000

CASE ASSY., AIR CLEANER


17228-ZM0-000

PACKING, AIR CLEANER


17231-Z0L-030

COVER, AIR CLEANER


90003-ZM0-000

BOLT, FLANGE, 6X86 (CT200)



BOLT, FLANGE, 6X14








Codul piesei

TOBA ESAPAMENT


18310-ZM0-000

MUFFLER COMP.


18321-ZL8-000

PROTECTOR, MUFFLER


90004-ZL8-000

BOLT, FLANGE, 6X79 (CT200)



BOLT, FLANGE, 6X12 (CT200)


18381-ZL8-305

GASKET, MUFFLER


18348-ZL8-000

CAP, MUFFLER


18430-ZL8-000

DEFLECTOR COMP., MUFFLER


90055-ZE1-000

SCREW, TAPPING, 4X6







Codul piesei

VOLANTA



KEY, SPECIAL WOODRUFF, 25X18


19612-ZM0-J20

PLATE, SIDE


30500-ZL8-004

COIL ASSY., IGNITION (TEC)(USE FOR F/W O



BOLT, FLANGE, 6X12 (CT200)



BOLT, FLANGE, 6X20 (CT200)



NUT, SPECIAL, 14MM


31110-ZL8-004

FLYWHEEL COMP. (TEC)(USE FOR IGN. COIL O


32195-ZM0-800

CORD, STOP SWITCH



CLIP A, CABLE (NIFCO)(3.8MM BLACK)



Codul piesei

CONTROLUL ACCELERATIEI


16551-ZM0-010

ARM, GOVERNOR


16555-ZM0-000

ROD, GOVERNOR


16561-Z1L-870

SPRING, GOVERNOR


16562-ZM0-000

SPRING, THROTTLE RETURN


16576-ZE7-300

SPRING, LEVER



HOLDER, CABLE


16580-ZM0-881

BASE COMP., CONTROL


16593-ZM0-000

SPRING, CONTROL LEVER RETURN


16674-ZM0-000

ROD, CHOKE


90015-ZE5-010

BOLT, GOVERNOR ARM


90016-ZM0-000

BOLT, FLANGE, 6X45 (CT200)


93500-050160A

SCREW, PAN, 5X16



NUT, FLANGE, 6MM


35120-ZL8-003

SWITCH ASSY., ENGINE STOP(N.O)



SCREW-WASHER, 4X12



WASHER, PLAIN, 4MM



SPRING, CONTROL ADJUSTING


16599-ZG1-M10

COLLAR, STOPPER


90016-ZE7-W00

SCREW, RECESSED, 5X28


16617-VG3-000

HOLDER, CABLE


Codul piesei

BLOC MOTOR


12311-ZL8-000

COVER, HEAD


12355-ZL8-000

COVER COMP., BREATHER



BOLT, FLANGE, 6X12 (CT200)



BOLT, FLANGE, 6X14 (CT200)


91201-ZL8-003

OIL SEAL, 25.4X62X6



PLUG, SPARK (BPR6ES) (NGK)


12000-ZL8-425

BARREL ASSY., CYLINDER


12209-ZM0-003

SEAL, VALVE STEM


14711-Z0J-000

VALVE, IN. (ROCKNEL)


14721-ZL8-000

VALVE, EX.


14751-ZL8-000

SPRING, VALVE


14771-ZE1-000

RETAINER, IN. VALVE SPRING






Codul piesei

CARTER ULEI


11300-ZM0-405

PAN ASSY., OIL


15650-Z0M-800

GAUGE ASSY., OIL LEVEL


15625-ZE6-000

PACKING, OIL FILLER CAP


15631-ZM0-000

EXTENSION, OIL FILLER


15639-ZM0-000

WASHER, EXTENSION LOCK


16508-ZM0-010

SHAFT COMP., GOVERNOR HOLDER


16510-ZM0-010

GOVERNOR ASSY.


16511-ZL8-000

WEIGHT, GOVERNOR


16512-ZM0-000

HOLDER, GOVERNOR WEIGHT


16513-ZE1-000

PIN, GOVERNOR WEIGHT


16531-ZE1-000

SLIDER, GOVERNOR


16541-ZM0-000

SHAFT, GOVERNOR ARM



BOLT, FLANGE, 6X14 (CT200)



BOLT, FLANGE, 6X25 (CT200)


90451-ZE1-000

WASHER, THRUST, 6MM


90602-ZE1-000

CLIP, GOVERNOR HOLDER


91202-ZL8-003

OIL SEAL, 28X41.25X6


91303-Z0M-003

O-RING, 14.8X2.4



WASHER, PLAIN, 6MM



PIN, LOCK, 8MM

023 919e46j


DOWEL PIN, 8X20





Codul piesei

ARBORE COTIT


13310-ZM0-600

CRANKSHAFT COMP.


90402-ZL8-000

WASHER, THRUST




Codul piesei

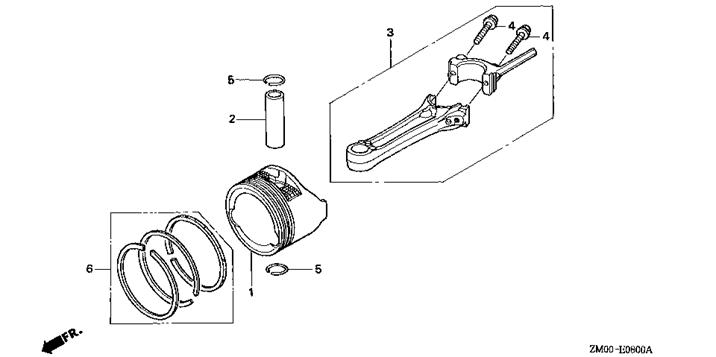

PISTON / SEGMENTI / BIELA


13101-ZL8-000

PISTON


13111-ZE0-000

PIN, PISTON


13200-ZL8-000

ROD ASSY., CONNECTING


90001-ZE1-000

BOLT, CONNECTING ROD


90551-ZE0-000

CLIP, PISTON PIN, 13MM


13010-ZL8-003

RING SET, PISTON (RIKEN)


13010-ZL8-024

RING SET, PISTON (TEIKOKU)
